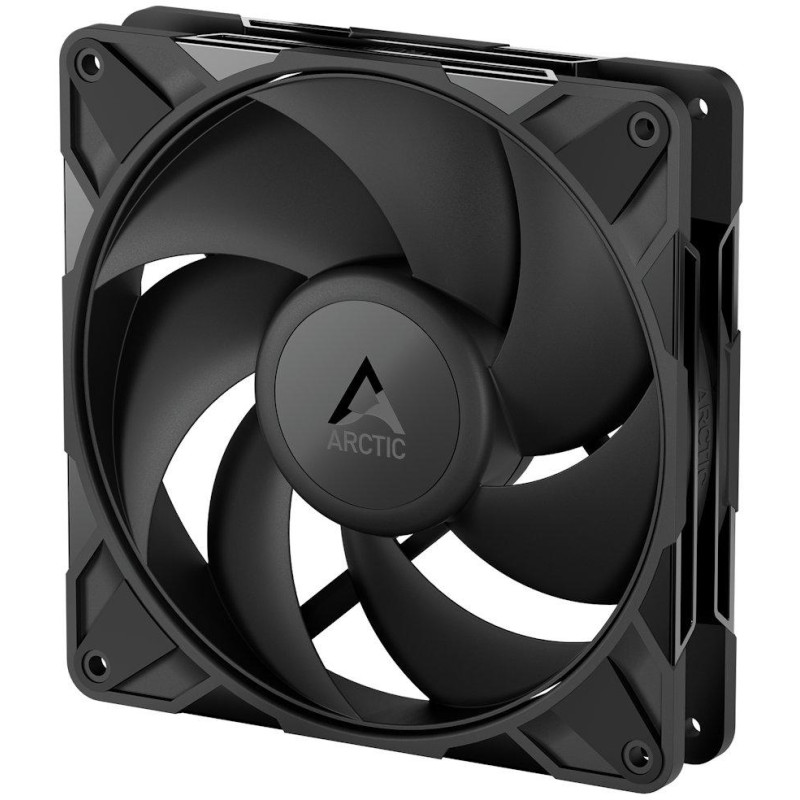

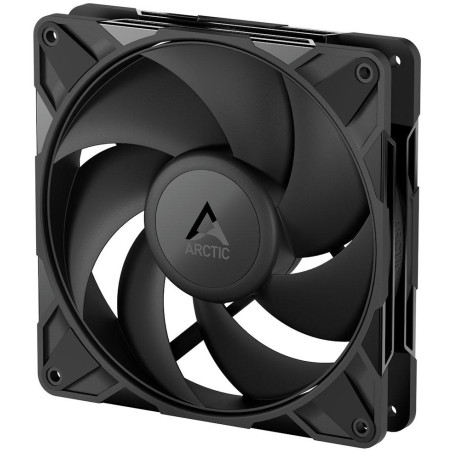

ARCTIC P14 Pro PST fan 140mm

Advanced 140mm PWM fan with fluid dynamic bearing for effective cooling of computer systems.

The ARCTIC P14 Pro PST fan is an advanced solution for cooling cases and radiators with dimensions of 140 × 140 × 27 mm . Thanks to PWM regulation in the range of 400–2500 rpm, it provides an optimal balance between performance and noise level. The special FDB bearing ensures long service life and quiet operation.

The fan is equipped with a practical daisy-chain cable with a length of 400 mm + 80 mm, which allows easy connection of multiple fans in series. The design meets RoHS requirements and is designed for operating temperatures from 0 to 40 °C .

Advanced PWM control
The fan supports smooth PWM control with the option of complete stop at a signal below 5%. The starting voltage of only 5 V DC allows reliable start-up even at low speeds.

Daisy chain technology
The integrated daisy-chain cable with 4pin plug + 4pin socket connectors allows multiple fans to be connected in series without the need for additional hubs or cables.

Optimized design
Specially shaped blades and an optimized frame minimize turbulence and ensure maximum efficiency with low vibration and noise.

BASIC SPECIFICATIONS

Dimensions: 140 × 140 × 27 mm

Weight: 242g

Speed: 400–2500 rpm (PWM controlled), 0 rpm below 5% PWM

Airflow: 110 CFM, 186 m³/h

Static pressure: 5.2 mm H 2 O
Bearing: FDB
Power supply: 12 V DC (starting 5 V DC)
Consumption: 0.35A
Cable: 400mm + 80mm daisy-chain
Connector: 4-pin PWM plug + 4-pin socket
Color: black
