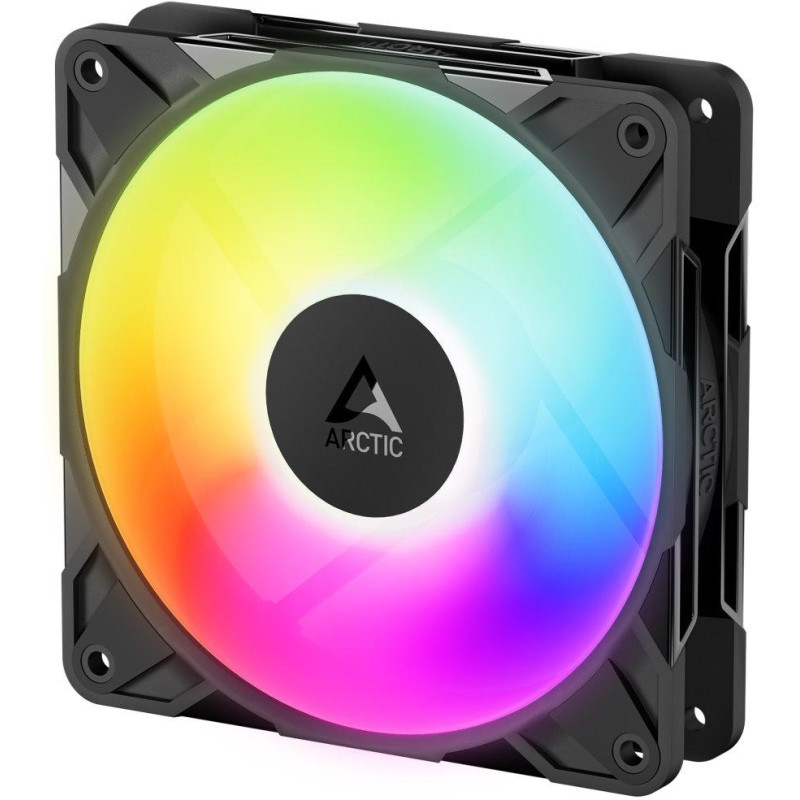

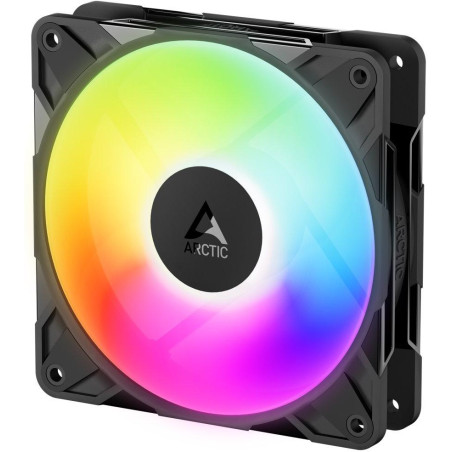

ARCTIC P12 Pro Reverse A-RGB fan 120mm

Specialized 120mm fan with reverse airflow and A-RGB backlighting for aesthetically demanding builds.

The ARCTIC P12 Pro Reverse A-RGB is designed specifically for rear-mounted airflow , allowing you to maintain the aesthetics of your build even when conventional fans would detract from the overall look. The fan combines advanced aerodynamics with attractive A-RGB lighting and offers a wide speed range of 500-3000 rpm with PWM control.

Thanks to its optimized design with funnel inlet and teardrop-shaped jets, it achieves high efficiency with minimal noise. The Fluid Dynamic Bearing ensures quiet operation and long service life, while PST technology allows for easy daisy-chaining of multiple fans.

Advanced aerodynamics and quiet operation
The funnel inlet and teardrop-shaped jets direct the air flow with minimal losses, reducing air resistance and aerodynamic noise. The minimum dimensions of the gaps between the rotor and stator ensure maximum efficiency.

A-RGB backlighting and PST connectivity
12 Gen2 A-RGB LEDs create impressive lighting compatible with major RGB systems. Thanks to PST technology, multiple fans can be connected in series and controlled simultaneously via a single PWM connector.

Optimized FDB bearing
The hydrodynamic bearing with an extended shaft improves pressure distribution and minimizes vibration, significantly reducing operating noise while maintaining high reliability.

BASIC SPECIFICATIONS

Dimensions: 120 × 120 × 27 mm

Speed: 500–3000 rpm (PWM control)

Airflow: 73 cfm | 124 m3/h

Static pressure: 4.5 mmH2O

Bearing: Fluid Dynamic Bearing

Voltage: 12 V DC (starting 3.5 V)

Current: 0.4A

A-RGB LED: 12× A-RGB Gen2 LED (5 V DC, 0.40 A)

Connectors: 4-pin PWM + 3-pin A-RGB (with pass-through connectors)

Cable length: 400 mm + 80 mm chain cable

Weight: 172g
