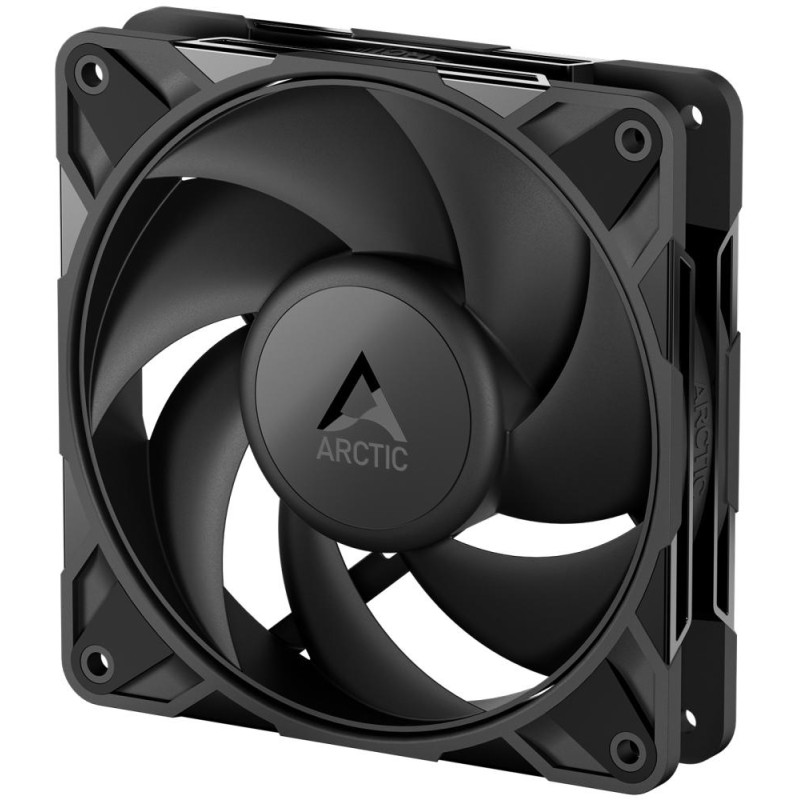

ARCTIC P12 Pro PST CO fan 120mm

Professional 120mm PWM fan designed for continuous operation with excellent performance to noise ratio.

The P12 Pro PST CO fan is the optimal solution for cooling computer cases, radiators and other applications requiring reliable and quiet operation. Thanks to the dual ball bearing, it is designed for continuous operation while maintaining a long lifespan and minimal noise.

Advanced PWM control allows for smooth speed control from 600 to 3000 RPM with the option of complete stop at PWM signal below 5%. A special daisy-chain cable with a connector and socket makes it easy to connect multiple fans in series without the need for hubs.

Advanced PWM control
The fan supports smooth PWM control with the option of completely stopping when the PWM signal is below 5%. The tachometric output provides precise feedback on the current speed for optimal cooling control.

Daisy-chain connection
Unique cabling with 4-pin connector and socket allows serial connection of multiple fans without the need for splitters. The main cable is 400 mm long, the extension part is 80 mm.

Supplied accessories
The package includes 4 mounting screws for standard installation in computer cases or on radiators. All materials comply with RoHS requirements.

BASIC SPECIFICATIONS

Speed: 600–3000 RPM (PWM controlled)

Airflow: 77 CFM | 131 m³/h

Static pressure: 6.9 mmH2O
Bearing: dual ball
Connector: 4pin PWM + 4pin socket
Operating temperature: 0-40°C
Voltage: 12 V DC (start 3.3 V DC)
Consumption: 0.33 A
Cable: 400mm + 80mm daisy-chain
Dimensions: 120 × 120 × 25 mmWeight: 185 g
