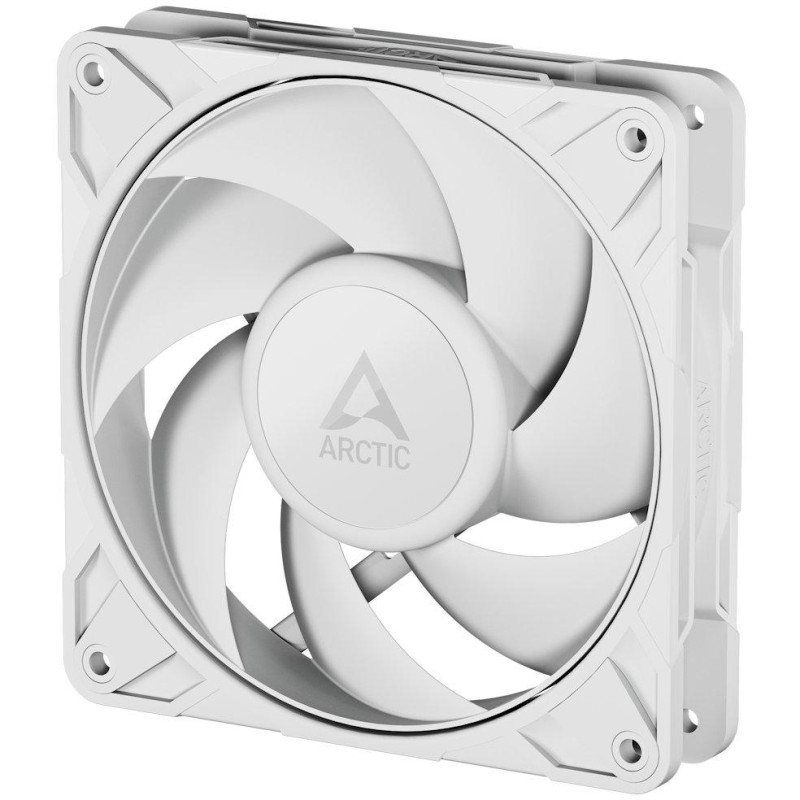

ARCTIC P12 Pro PST fan 120mm white

Professional 120mm PWM fan with advanced PST technology for daisy chaining multiple fans.

The ARCTIC P12 Pro PST fan is a top-notch solution for cooling computer cases and radiators. Thanks to Fluid Dynamic Bearings, it ensures quiet and reliable operation with a long service life. PWM regulation allows for smooth speed control from 600 to 3000 rpm according to the current thermal load of the system.

Innovative PST (PWM Sharing Technology) allows for easy daisy-chaining of multiple fans using the integrated daisy-chain cable. The fan achieves a high airflow of 77 cfm at a static pressure of 6.9 mmH2O , ensuring effective cooling even in limited space.

PST technology and connectivity
Revolutionary PST (PWM Sharing Technology) allows multiple fans to be connected in series and controlled by a single PWM signal from the motherboard. Each fan has a 4-pin connector and a 4-pin socket for easy daisy-chaining.

Optimized bearings and quiet operation
Fluid Dynamic Bearings ensure minimal noise at maximum performance. The fan can be completely stopped when the PWM signal is below 5%, allowing passive cooling at low system loads.

Universal use
Standard dimensions of 120 × 120 × 25 mm and a weight of only 185 g make the fan an ideal choice for cooling cases, water cooling radiators and CPU coolers. Compatible with RoHS requirements.

BASIC SPECIFICATIONS

Dimensions: 120 × 120 × 25 mm

Weight: 185g

Speed: 600–3000 rpm (PWM controlled), 0 rpm below 5% PWM

Airflow: 77 cfm (131 m3/h)

Static pressure: 6.9 mmH2O

Bearings: Fluid Dynamic Bearing

Power supply: 12 V DC, starting voltage 3.3 V DC

Consumption: 0.33 A

Cable: 400mm + 80mm daisy-chain

Connector: 4-pin fan plug + 4-pin socket

Operating temperature: 0–40°C

Package contents: fan, 4x mounting screws
