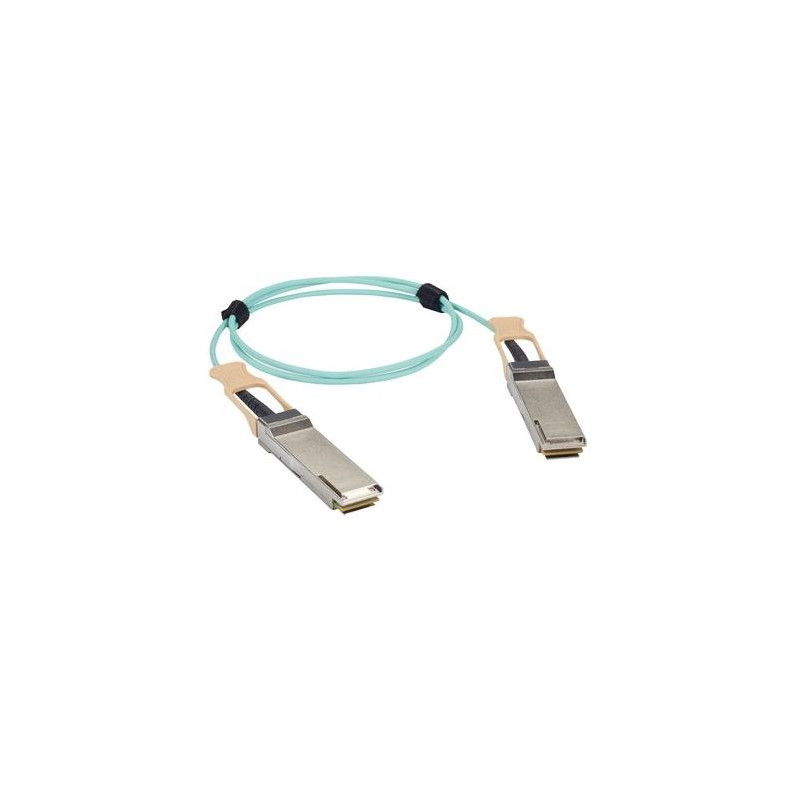

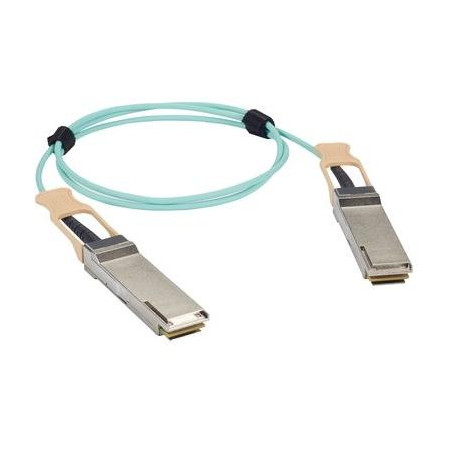

XtendLan QSFP28 AOC optical patch cable, 100Gb/s, 5m, active, Cisco, Planet compatible

XtendLan QSFP28 AOC patch cable 5 m

Active optical cable (AOC) with QSFP28 connectors and a length of 5 m . It is used to connect active elements inside data centers and, compared to DAC cable, uses optical fiber for transmission, which significantly extends its range. The maximum throughput is 100 Gbps .

•

• QSFP28 4× 25 Gbps AOC Hot-Plug cable (Active Optical Cable) for 100 Gigabit Ethernet

• Aggregated transfer rate 103.1 Gbps

• AOC module – 4 electrical input/output channels operating at speeds up to 25.78 Gbps per channel.

• 2× transmitter/receiver unit (850nm wavelength)

• Electrical interface – CAUI-4 as defined by IEEE 802.3bm & compliant with QSFP28 MSA standard

• 3.3 V power supply and dissipation up to 2.5 W

• I2C interface with integrated digital diagnostic monitoring

• Certifications and Standards - Class 1 FDA and IEC60825-1 Laser Safety Compliant, QSFP28 MSA, TUV/UL/FDA, RoHS, 100G Base-SR4 Ethernet

• Compatible with Cisco and Planet elements


BASIC SPECIFICATIONS

Cable type: AOC (OM2+/OM3)

Speed: 100Gbps

Connector 1: QSFP28

Connector 2: QSFP28

Operating temperature: 0 to +70 °C

Length: 5 m
