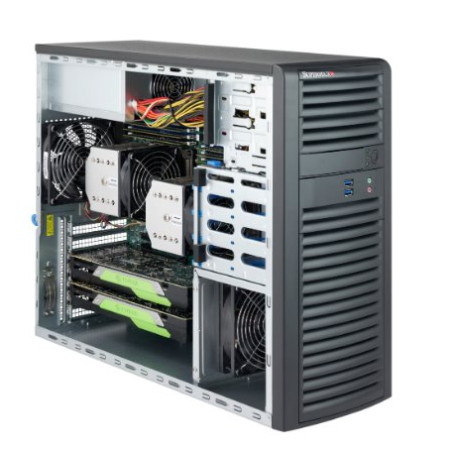

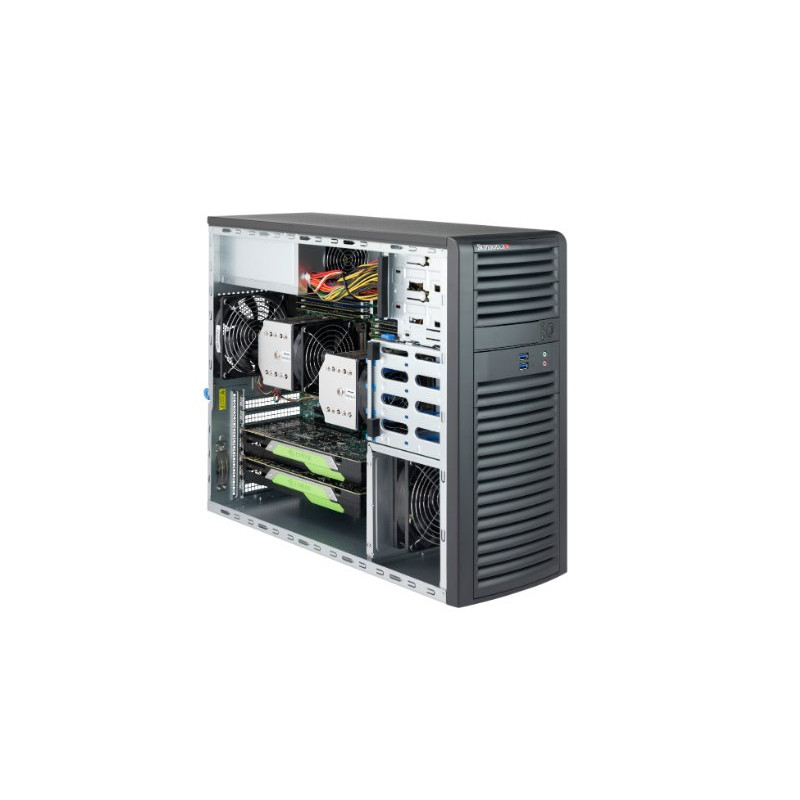

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5",(Audio,2xUSB) 1200W (80PLUS Platinum)

Product SKUs
CSE-732D3-1K26B
SuperChassis 732D3-1K26B

Form Factor
Mid-tower chassis support motherboard sizes E-ATX (12" x 13"), ATX (12" x 10") & Micro-ATX (9.6" x 9.6")

Processor Support
Dual and Single Intel® and AMD processors

Dimensions
Height
16.7" (424 mm)
Width
7.6" (193 mm)
Depth
20.68" (525 mm)
Gross Weight
30 lbs (13.61 kg)
Net Weight
27 lbs (12.25 kg)
Packaging (W x H x L)
11.97" (304 mm) x 21.38" (543 mm) x 25.28" (642 mm)
Available Color
Black

Expansion Slots
7x Full-height, Full-length expansion slot(s)

Drive Bays
Optional 4x 2.5" fixed drive bay
4x 3.5" fixed drive bay

Peripheral Drives
2x standard 5.25" drive bay
1x card reader module

Front Panel
Button
Power On/Off button
LED
HDD activity LED
1 Network activity LEDs
System Information LED
Port
2x USB 3.0 Port(s)
1x Audio Jack(s)
Systems Cooling
Fans
Optional 1x 12cm (front) cooling fan
1x 12cm rear exhaust fan(s)

Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply
1200W PS2 Multi-output power supply
Power Efficiency
94%
Total Output Power and Input
1200W with Input 120 - 240Vac
1000W with Input 100 - 120Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0A
+12V
Max: 99A / Min: 1A (120Vac - 240Vac)
Max: 83A / Min: 1A (100Vac - 120Vac)
+5V
Max: 20A / Min: 0.3A
+3.3V
Max: 20A / Min: 0.3A
+5Vsb
Max: 3A / Min: 0A
Certification
Platinum Certified Platinum Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
UL/CB
