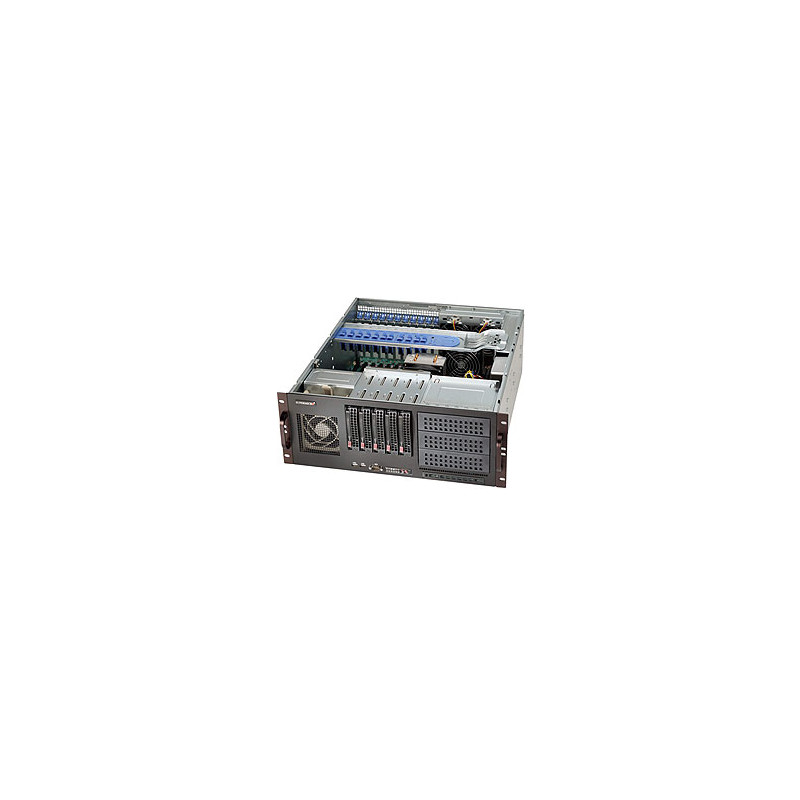

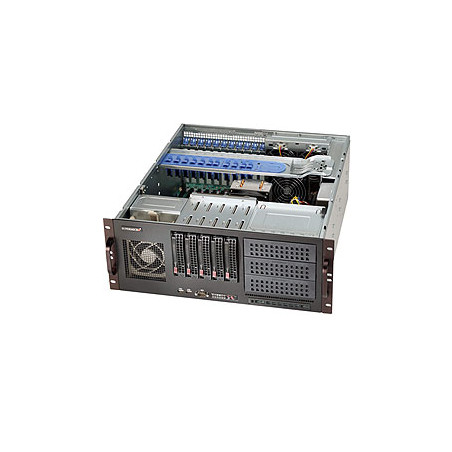

SUPERMICRO 4U 5x 3,5" HS SAS/SATA, 3x 5,25", 2x600W (80PLUS Platinum)

Product SKUs

CSE-842XTQC-R804B SuperChassis 842XTQC-R804B



Form Factor

4U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" E-ATX/ATX/MicroATX



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 7" (178 mm)

Width 17.2" (437 mm)

Depth 20.5" (521 mm)

Gross Weight 46 lbs (20.87 kg)

Packaging (W x H x L) 26.4" (671 mm) x 13.8" (351 mm) x 31.5" (800 mm)

Available Color Black



Expansion Slots

7 full-height & full-length expansion slot(s)
4 full-height & half-length expansion slot(s)



Drive Bays

5 x 3.5" hot-swap SAS3/SATA drive bay



Backplane

4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS



Peripheral Drives

3 x standard 5.25" drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Ports 2x USB 3.0 Port(s)
1x Com Port(s)







Systems Cooling

Fans 1 x 9cm hot-swap cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
800W 1U redundant power supply
Power Efficiency 94%

Total Output Power and Input 750W with Input 100 - 127Vac
800W with Input 200 - 240Vac
800W with Input 230 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 220 x 54.5 x 40.25 mm

Output Type Backplanes (gold finger)

+12V Max: 62.5A / Min: 0.5A (100Vac - 127Vac)
Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
Max: 66.6A / Min: 0.5A (230 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT842-8824
O/P: 12V/92A
+5V Max: 30A
+3.3V Max: 28A
-12V Max: 0.6A

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
UL/CB



Components ?





Standard Parts List

Part Number Qty Description
HD Backplane BPN-SAS3-842TQ 1 4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS
Cable(S) CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0286L 2 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
Cable(S) CBL-0336L 1 57CM, 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
Cable(S) CBL-0484L 5 55CM 30AWG SATA S-S CBL
Cable(S) CBL-CUSB-0621 1 19p Female to 2x USB 3.0 type A cable, 70cm
Cable(S) CBL-CUSB-0621-1 1 USB 3.0(F) Type A 2x to USB3.0 20pin,70CM,26/30AWG,RoHS
Fan(s) FAN-0097L4 1 92x92x38 mm, 5K RPM, 4-pin PWM w/ Housing for SC842
Fan(s) FAN-0180L4 2 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
Drive Tray(s) MCP-220-00075-0B 5 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT842-8824 1 Power Distributor for SC842
Power Supply & Accessory PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input




Optional Parts List

Part Number Qty Description
Cable CBL-0153L - 6pin GPU Power Adapter Cable from PDB 2x big 4pin, 16cm
LCD MCP-220-00095-0B - Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
Rail MCP-290-00057-0N - Rail set, quick/quick, default for 4U 17.2
Front Bezel MCP-210-84201-0B - Black 4U Plastic Front Bezel Assembly (w/ Lock) for SC842
Add-on Card Holder (11 slots) MCP-290-74702-0N - GPU Card Holder (11 slots) for SC747TQ, SC842
Mobile Rack CSE-M28SACB - Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD with fan module,HF,RoHS/REACH
Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH
Tray(s) MCP-220-00131-0B - Black service/ID tag tray for slim DVD bay





Motherboard (for CSE- 842XTQC-R804B)


X11DPX-T X11SPA-TF X11SPA-T
