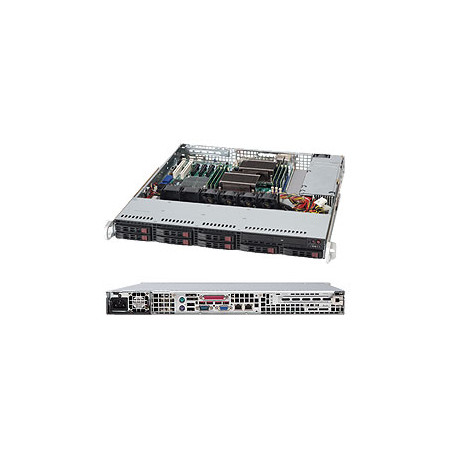

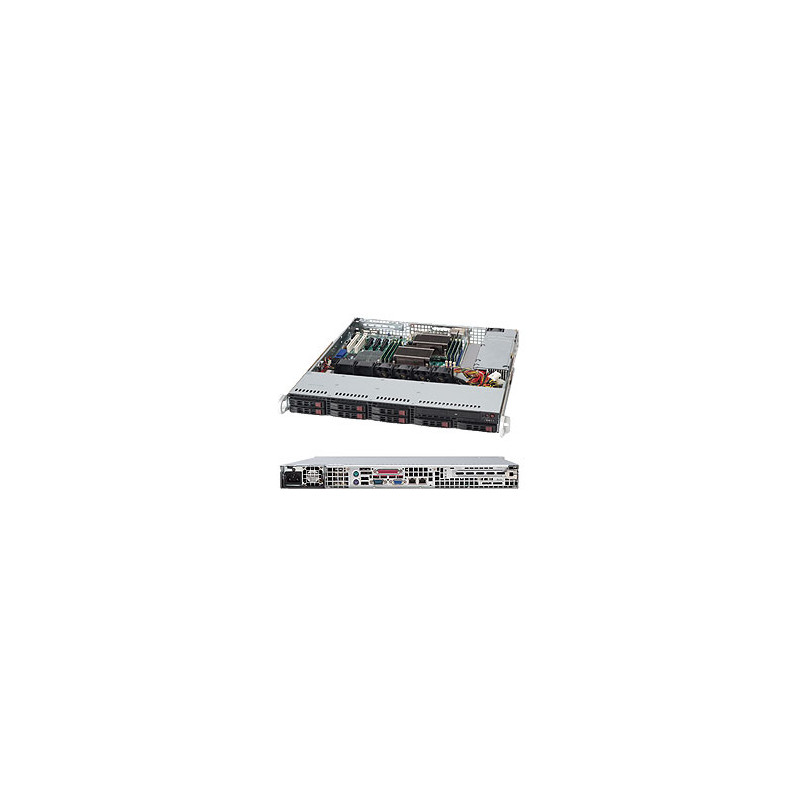

SUPERMICRO 1U chassis 8x 2,5" HS SAS/SATA, 600W (80PLUS Platinum)

Product SKUs

CSE-113MTQ-600CB SuperChassis 113MTQ-600CB



Form Factor

##1U Rackmount Chassis, supports maximum motherboard sizes: 13.68" x 10.5"



Processor Support

##Dual and Single Intel® and AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 19.98" (507 mm)

Gross Weight 29.5 lbs (13.38 kg)

Packaging (W x H x L) 24" (610 mm) x 8.5" (216 mm) x 30" (762 mm)

Available Color Black



Expansion Slots

1 full height expansion slot(s)



Drive Bays

8 x 2.5" hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended



Backplane

8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD



Peripheral Drives

Optional 1 x Slim DVD-ROM Drive



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency 92%

Total Output Power and Input 600W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 279.4 x 76 x 40.4 mm

Output Type 24pin ATX

-12V Max: 0.5A / Min: 0A

+12V Max: 49A / Min: 0.5A (100Vac - 240Vac)

+5V Max: 18A / Min: 0.5A

+3.3V Max: 15A / Min: 0.5A

+5Vsb Max: 3A / Min: 0A

+12Vsb Max: NAA

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
