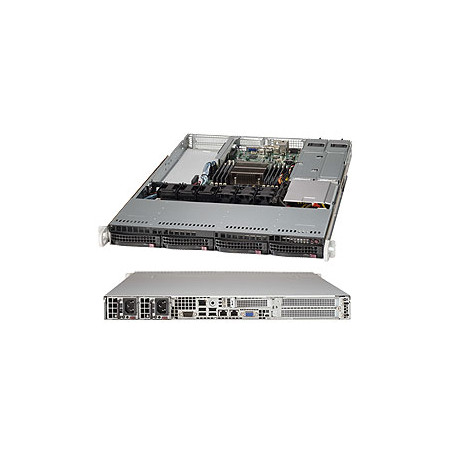

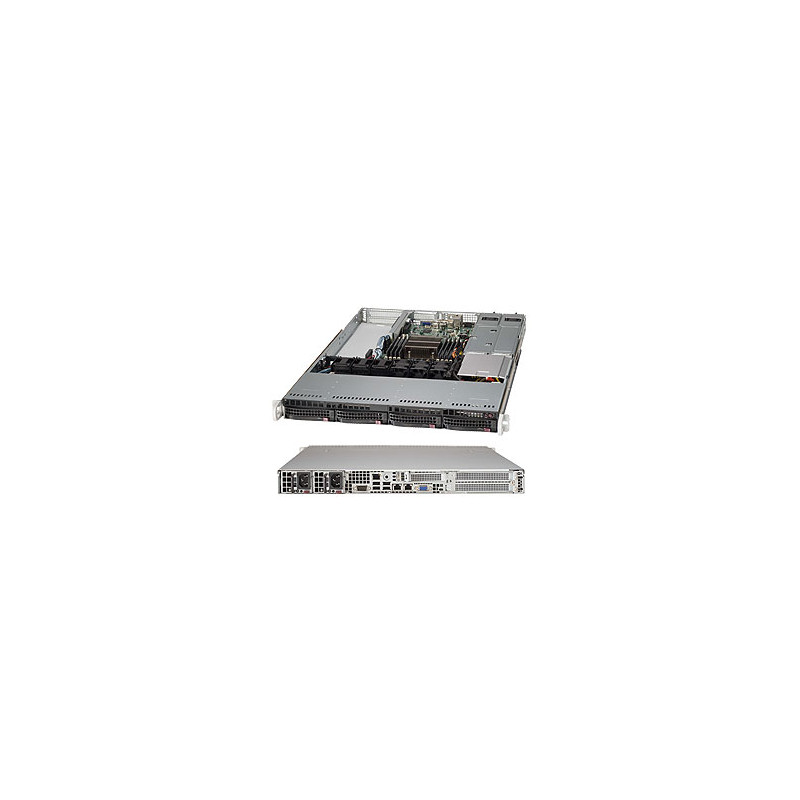

SUPERMICRO 1U chassis 4x 3,5" HS SAS/SATA, 2x500W (80PLUS Platinum), WIO

Product SKUs

CSE-815TQC-R504WB SuperChassis 815TQC-R504WB



Form Factor

Optimized for WIO (W series) motherboards



Processor Support

Dual, single Intel® / AMD processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 25.6" (650 mm)

Gross Weight 36 lbs (16.33 kg)

Packaging (W x H x L) 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm)

Available Color Black



Expansion Slots

2 full-height & full-length expansion slot(s)
1 low-profile expansion slot(s)



Drive Bays

4 x 3.5" hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended



Backplane

1U 4-Port 12Gbps Backplane Support 4x3.5



Peripheral Drives

Optional 1 x slim DVD-ROM drive bay



Front Panel

Buttons Power On/Off button
System Reset Button
Unit Identification (UID) button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 3 x 40x56mm counter-rotation PWM fan(s)



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 500W Redundant Single Output power supply W/PMbus 54.5mm width
Power Efficiency 94%

Total Output Power and Input 500W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 320 x 54.5 x 40.25 mm

Output Type Backplanes (gold finger)

-12V Max: NAA

+12V Max: 42A / Min: 0.5A (100Vac - 240Vac)

+5Vsb Max: 4A / Min: 0A

+12Vsb Max: NAA

Power Distributor PDB-PT112-2420
O/P: 12V/54
+5V Max: 25
+3.3V Max: 25
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
