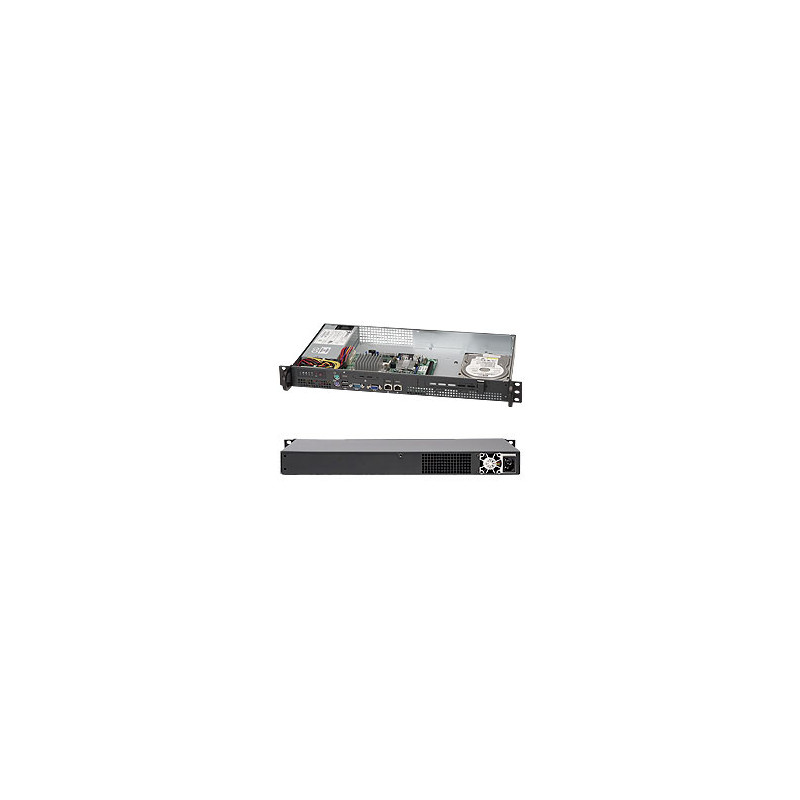

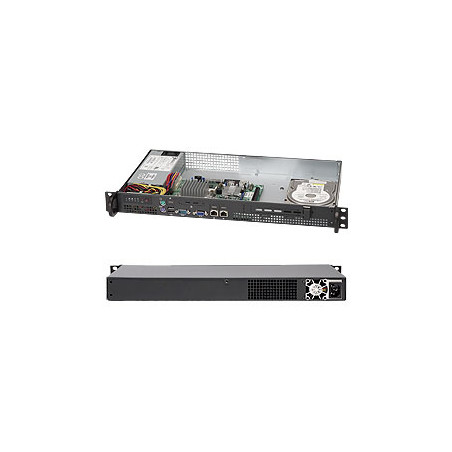

SUPERMICRO mini1U chassis Přední I/O, 1x 3,5" fixed HDD (nebo s MCP-220-00044-0N 2x2,5"), 200W, pro Atom MB

Product SKUs

CSE-503L-200B SuperChassis 503L-200B



Form Factor

9.8" Mini 1U chassis support for maximum motherboard size: Micro-ATX 9.6" x 9.6"



Processor Support

Intel® Atom™ processors



Dimensions

Height 1.7" (43 mm)

Width 17.2" (437 mm)

Depth 9.8" (249 mm)

Gross Weight 10 lbs (4.54 kg)

Packaging (W x H x L) 25.8" (655 mm) x 6.1" (155 mm) x 18.3" (465 mm)

Available Color Black



Expansion Slots

1x full-height half-length PCI expansion slot (Optional) (Riser Card Required)



Drive Bays

1 x 3.5" fixed drive bay
Or optional 2 x 2.5" Internal Drive
Or optional 1 x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI
SAS or enterprise SATA HDD only recommended



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)







Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 200W Multi-output power supply with 20pin, YM-5201D
Power Efficiency 82%

Total Output Power and Input 200W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 192.8 x 76.2 x 40.3 mm

Output Type 20pin ATX

-12V Max: 0.8A / Min: 0A

+12V Max: 15A / Min: 1A (100Vac - 240Vac)

+5V Max: 16AA / Min: 0.3A

+3.3V Max: 17A / Min: 0.5A

+5Vsb Max: 2A / Min: 0.1A

+12Vsb Max: NAA

Certification N/A



Regulatory (Power Supply)

Power Supply Safety / EMC CE/EMC
FCC class B
TUV/CB
UL/CUL
