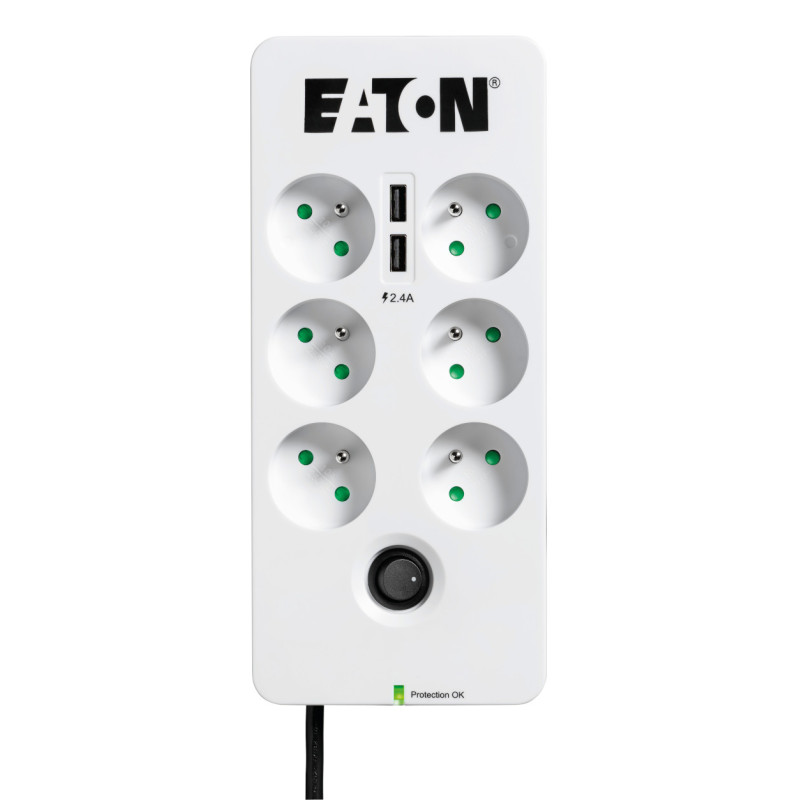

EATON Protection Box 6 USB FR, přepěťová ochrana, 6 výstupů, zatížení 10A, 2x USB port

Technical specifications

1

1 Tel@

6

6 USB

6 USB Tel@

8 USB Tel@

Rating (A/W)

16 A / 4000 W

16 A / 4000 W

10 A / 2 500 W

10 A / 2 500 W

10 A / 2 500 W

10 A / 2 500 W

Voltage/frequency

220 – 250 Vac 50/60 Hz

USB charging ports

/

/

/

2

2

2

Power line protection

Surge test conditions for IEC 61643-11 with 1.2/50µs; 8/20µs pulse

L+N to PE : Uoc = 6 kV; Up < 1.5 kV; In = 3 kA L to N : Uoc = 4 kV; Up < 1.5 kV; In = 2 kA

Protective devices

Total rating

18 000 A, 3 x MOV 6 000 A

Response time

<1ns

Telephone line protection

RJ11 telephone including broadband

/

10 000 A

/

/

10 000 A

10 000 A

Surge test conditions for IEC 61643-21 with 1.2/50µs; 8/20µs pulse C2

Pin 4 & 5 to PE : Uoc = 6 kV; Up < 1.5 kV; In = 3 kA Pin 4 to Pin 5 : Uoc = 4 kV; Up < 1.5 kV; In = 2 kA

Certifications & compliance

Certifications

CE / EAC / CM

Compliance

IEC 60884-1 / IEC 61643-11 / IEC/EN 61000-6-1 / IEC/EN 61000-6-3 / NF C61-314 / VDE 06020

Dimensions and weight

Dimensions H x W x D

72.5 x 55 x 98 mm

72.5 x 55 x 98 mm

47.5 x 110 x 245 mm

47.5 x 110 x 245 mm

47.5 x 110 x 245 mm

47.5 x 110 x 290 mm

Weight

0.115 kg

0.124 kg

0.586 kg

0.612 kg

0.646 kg

0.713 kg

Customer service & support

2 years warranty

Product standard exchange ; warranty for connected equipment up to 50 000 €

Part numbers

1

1 Tel@

6

6 USB

6 USB Tel@

8 USB Tel@

French sockets (FR)

PB1F

PB1TF

PB6F

PB6UF

PB6TUF

PB8TUF
