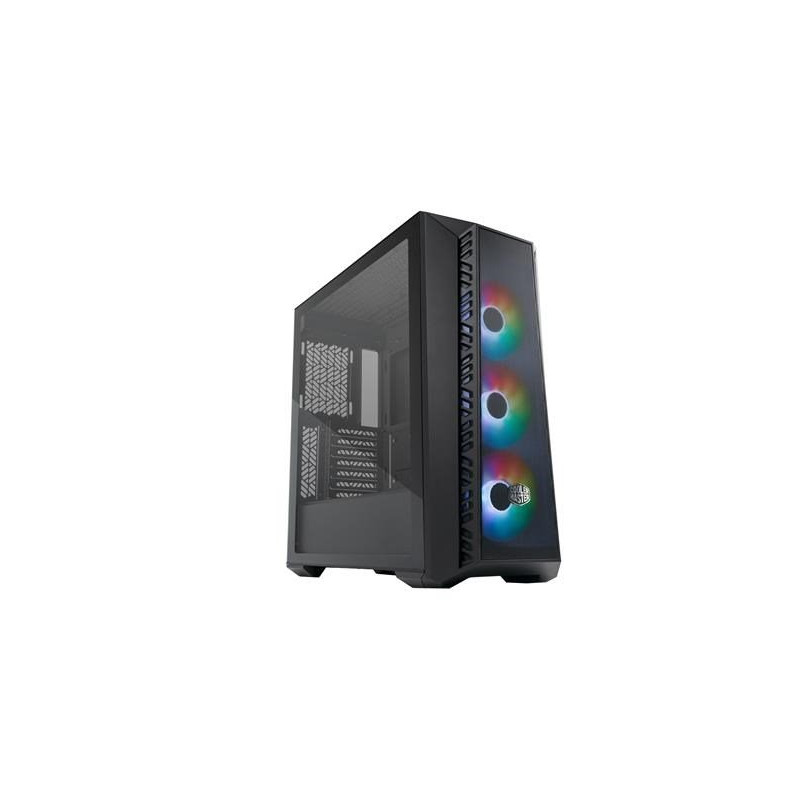

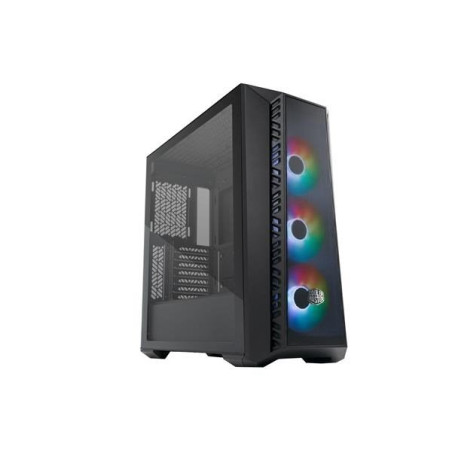

CoolerMaster case MasterBox 520 Mesh, ATX, čierna, bez zdroje

TECHNICAL SPECIFICATIONS

Product Number MB520-KGNN-S00
Exterior Color Black
Material Exterior - Mesh, Steel, ABS Plastic, Tempered Glass
Left Side Panel - Tempered Glass
Dimensions (L x W x H) incl. Protrusions - 502x 210 x 498mm
Body size - 443x 210 x 498mm
Volume 50L
Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX*
(*up to 12” x 10.7” motherboards, may impact cable management feature)
Expansion Slots 7
Drive Bays 5.25" ODD - 0
3.5" HDD - 2
2.5" SSD - 3
I/O Panel USB Ports - 1 x USB 3.2 Gen1 Type-A + 1x USB 3.2 Gen2 Type-C
Audio In / Out - 1x 3.5mm Headset Jack (Audio + Mic)
Others - 1x RESET/ARGB button
Included Accessories ARGB Fans Hub
Included Fan(s) Top - N/A
Front - 3 x CF120 ARGB
Rear - N/A
Fan Support Top - 3 x 120mm / 2 x 140mm
Front - 3 x 120mm / 2 x 140mm
Rear - 1 x 120mm
Radiator Support Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm)
Front - 120/140/240/280/360mm
Rear - 120 mm

Clearances CPU Cooler - 165mm / 6.49”
Power Supply - 200mm (Recommended up to 170mm)

Graphics Card - 410mm / 16.10”
Dust Filters Bottom, Front, Top
Power Supply Support ATX
Warranty 2 Years
