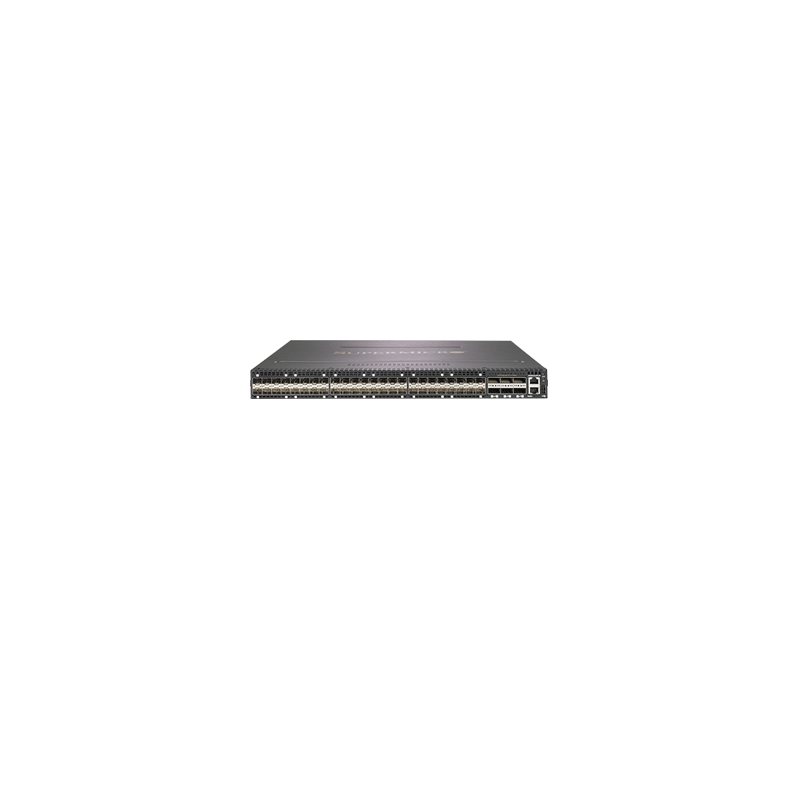

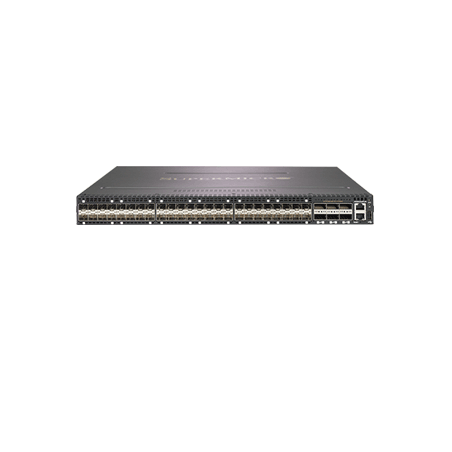

SUPERMICRO SSE-F3548S, 25GbE/10GbE Top of Rack Switch, Layer 2

25GbE/100GbE Top of Rack Switch (Stand-alone)


Data center optimized 25-Gigabit Ethernet switch offering the flexibility of different speeds 100G, 40G, 25G, 10G and 1G for smooth cost effective network migration

SSE-F3548S and its companion SSE-F3548SR Layer 3 Ethernet Switch both offer forty-eight 25-Gigabit Ethernet ports allowing data center friendly connectivity to 25GbE servers. These 48 ports can also run in 10Gigabit or in 1Gigabit speed to connect to existing low speed network devices. SSE-F3548S/R also offer six ports running at 100Gbps for access to high-speed backbone networks or storage servers. These 100Gbps port can also operate in 40Gbps speed or each can be split in to four different ports to run in 25Gbps or 10Gbps speed.

The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. The included rail kit facilitates rack-mounting installations. And the SSE-F3548SR model provides a data-center-friendly reverse air-flow for improved cooling when installed in the rear of a rack.

A comprehensive protocol software suite ensures optimal performance in even the most demanding enterprise-class networking environments such as large scale cloud and virtualized environments. These switches are ideal for organizations with growing and consolidated data centers.





Compliance

RoHS 6/6




Operating System / NOS

The SSE-F3548 switch comes with preloaded Supermicro OS.
No additional licensing is required.


Download

Datasheet - Standard ToR Ethernet Switches [ Download ]
QIG - Quick Installation Guide [ Download ]
Flyer - Flyer [ Download ]
Manuals - Switch Configuration Guide [ Download ]
Firmware - Firmware Upgrade [ Download ]
Connectivity Guide - Connectivity Guide [ Download ]
Config. Guides - System Config. Guide [ Download ]
- VLAN Config. Guide [ Download ]
- Link Aggregation Config. Guide [ Download ]
- MLAG Config. Guide [ Download ]
- Spanning Tree Config. Guide [ Download ]
- IGMP Snooping Config. Guide [ Download ]
- ACL Guide [ Download ]
- QoS Config. Guide [ Download ]
- Port Mirroring [ Download ]
- SNMP Config. Guide [ Download ]
- RMON Config. Guide [ Download ]
- Security [ Download ]
- LLDP Config. Guide [ Download ]
- Data Center Bridging Exchange (DCBX) [ Download ]
- IPv4 Overview [ Download ]
- IP Multicast Overview [ Download ]
- IP Unicast Routing Overview [ Download ]
- PIM Config. Guide [ Download ]



Resources


25Gb Ethernet White Paper








Specifications


Port Attributes::
- 48x Twenty five-Gigabit Ethernet ports - SFP28
- 6x Hundred-Gigabit Ethernet ports - QSFP28
- RJ-45 (for console cable)
- RJ-45 1G Ethernet Management Port
- USB


Switching::
- Switching Capacity: 3.6 Tb
- 1:1 Non-blocking connectivity


Layer 2 Features::
- 4K VLANS
- Spanning Tree (802.1D)
- Rapid Spanning Tree (802.1w)
- Multiple Spanning Trees (802.1s)
- IEEE 802.lQ VLANs/ port-based VLANs
- IEEE 802.3ad with LACP
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP)


Advanced Layer 2 Features::
- Storm control
- Flow control
- Port mirroring
- Uplink Failure Detection (UFD)
- MLAG


Layer 3 or Routing Features::
- Static Routing, RIP v1/v2, OSPF v1/v2 & BGP
- IPv4 routing
- VRRP (Virtual Router Redundancy Protocol)
- ARP


Datacenter Friendly::
- Multi Chassis Link Aggregation (MLAG)
- RESTCONF
- Ansible
- RoCE
- VXLAN Bridging
- Data Center Bridging / Storage Support


System Management::
- Industry Standard CLI
- Context Sensitive Help
- Command Completion
- SNMP v1/v2/v3
- SSH
- Syslog
- DHCP (Client)
- Web-based management interface
- NTP
- RMON


Multicast::
- IGMP Snooping


Ethernet frame::
- Jumbo frames up to 9KB


Power::
- Redundant Hot-pluggable 500W Power Supplies
- AC Input: 100-127/200-240 V, 50/60 Hz
- Power Consumption: 410 Watts
- Regular and Reverse Airflow Models


Physical/Environmental::
- 1U form factor for flexible installation
- Weight: Net weight: 8.9 Kg (19.6 lb) with 2 PSUs
- Size (W x D x H):
445 x 510 x 44 mm (17.52 x 20.1 x 1.73 inches)
- Temperature: Operating 0°C to 45°C (32°F to 113°F)
- Humidity: Operating: 0% to 95% RH


General::
- Mounting Rails (included)
