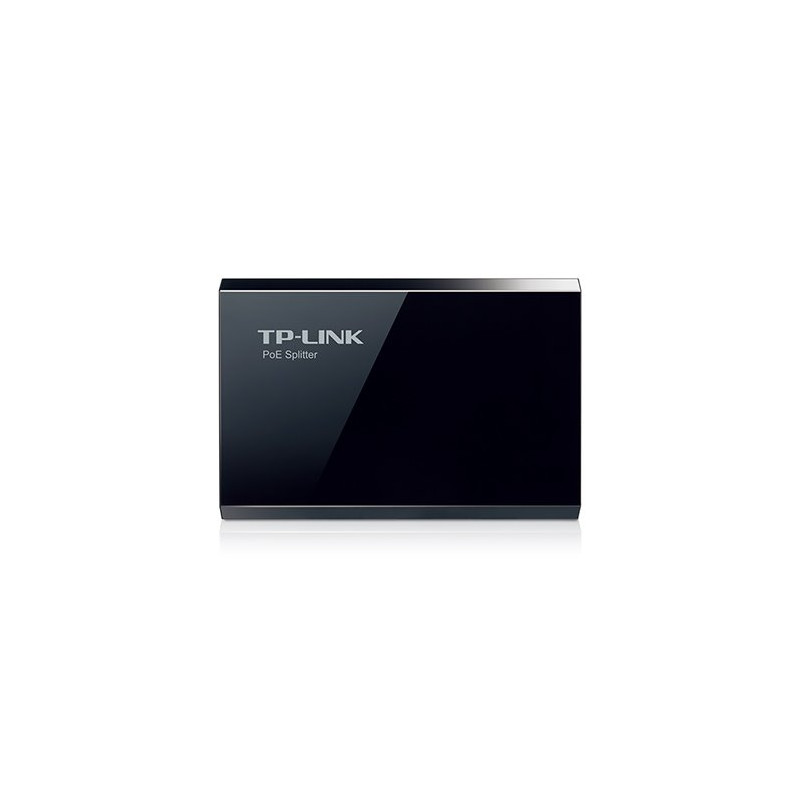

PoE Splitter Adapter PORT: 1× Gigabit PoE Port, 1× Gigabit Non-PoE Port SPEC: 802.3af Compliant, Data and Power Carried

TL-POE10R
Splitter PoE
Vyhovuje standardu IEEE 802.3af
Nastavitelný výstupní výkon
Gigabitová rychlost
Instalace typu Plug and Play

HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
OTHERS
Certification FCC, CE, RoHS
Package Contents PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
