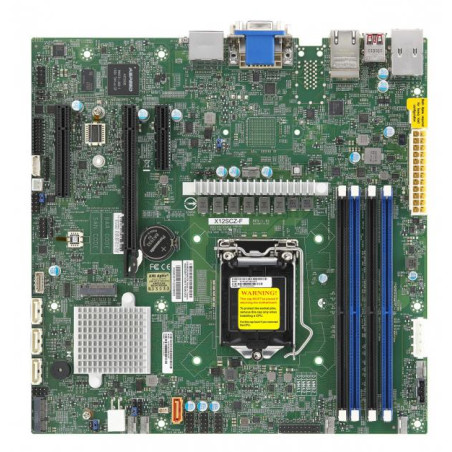

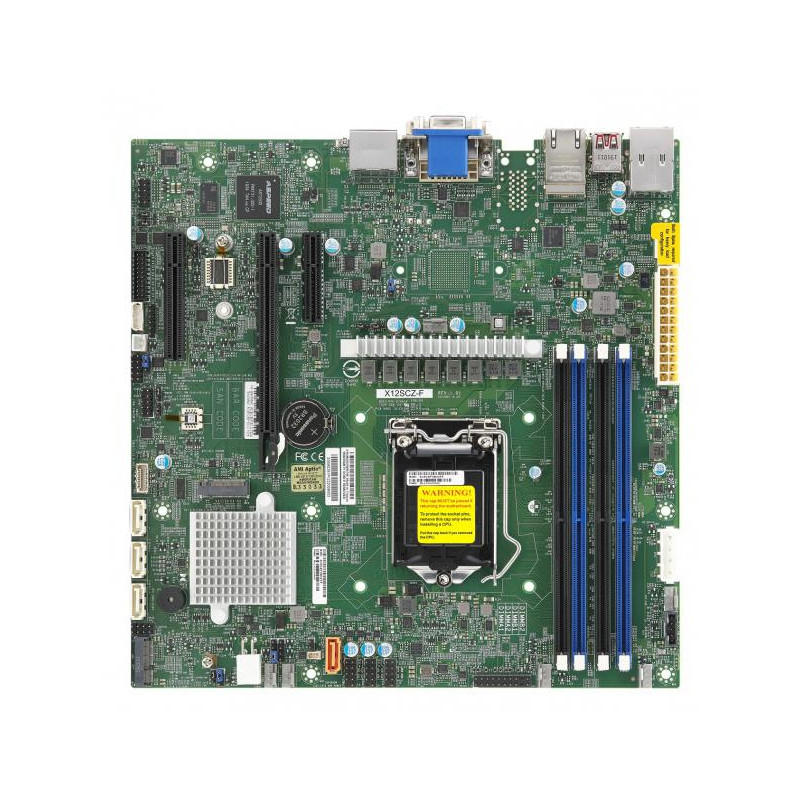

SUPERMICRO MB LGA1200 1U(Xeon W-12xx, core), W480,4xDDR4,4xSATA3,M.2,3xPCIe3.0 (16/4/4),2xDP,DVI,Audio,2x1Gb,IPMI

Product SKUs

MBD-X12SCZ-F X12SCZ-F



Physical Stats

Form Factor microATX

Dimensions 9.6"" x 9.6"" (24.38cm x 24.38cm)



Processor/Cache

CPU 10th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports

Cores / Cache Up to 10 cores

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

Memory Type 2933/2666/2400/2133MHz

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® W480

SATA Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT

Audio ALC 888S HD Audio

Graphics Aspeed AST2500 BMC, Intel® HD Graphics



Input / Output

SATA 4 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 6 USB 2.0 ports (6 via headers)
6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)

Video Output 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port

Serial Port / Header 2 COM Ports (1 header)


TPM TPM Header & Chip both







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4

M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup



Management

Software AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor® 5, vPro, Watchdog

System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Power Configurations +12V DC Power Input
ATX Power connector
ACPI Power Management



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory, PCH temperature, VBAT

FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control

Temperature Thermal Control for 5 Fan Connectors

LED Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID

Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-F 1 X12SCZ-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-F 1 X12SCZ-F Motherboard
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket



Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00094-0N -- 1U I/O Shield for X12SCZ with EMI Gasket in CSE-512/813
USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket
Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
Serial Port Cable CBL-CDAT-0604 -- Dual Serial Port cable with bracket 40cm



Chassis (Optimized for X12SCZ-F)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC510FT-203B
