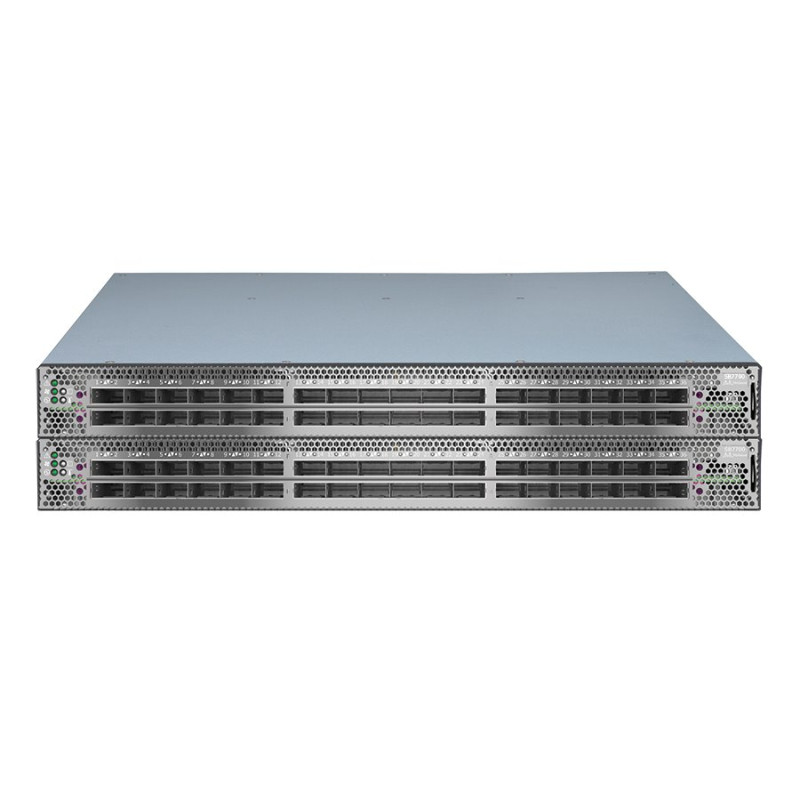

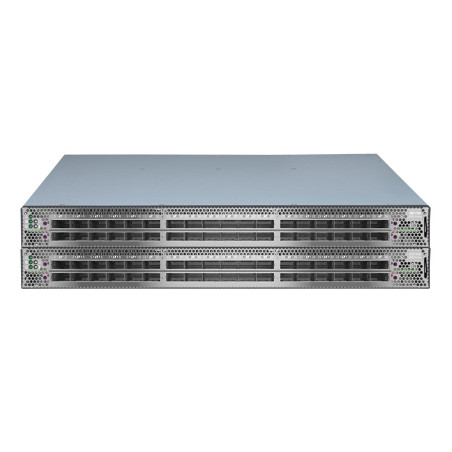

Nvidia Mellanox Switch-IB 2 based EDR IB 1U Switch, 36 QSFP28 ports, 2 PSU (AC), x86 dual core, std.depth, rail

BENEFITS
–– Industry-leading switch platform in performance,
power, and density
–– Designed for energy and cost savings
–– Quick and easy setup and management
–– Maximizes performance by removing fabric
congestions
–– Backward compatible to FDR technology
KEY FEATURES
Performance
–– 36 X EDR 100Gb/s ports in a 1U switch
–– 7Tb/s aggregate switch throughput
–– 90ns switch latency
–– 136W typical power consumption
Optimized Design
–– 1+1 redundant & hot-swappable power
–– N+1 redundant & hot-swappable fans
–– 80 gold+ and energy star certified power supplies
–– Dual-core x86 CPU
Advanced Design
–– Compliant with IBTA 1.2.1 and 1.3
–– InfiniBand Router*

MELLANOX SB7700
- 19’’ rack mountable 1U chassis
- 36 QSFP28 non-blocking ports with aggregate
data throughput up to 7 Tb/s (EDR)
SWITCH SPECIFICATIONS
- Compliant with IBTA 1.21 and 1.3
- 9 virtual lanes: 8 data + 1 management
- 256 to 4Kbyte MTU
- Adaptive Routing
- IB Router*
- 4X48K entry linear forwarding data base
MANAGEMENT PORTS
- Dual 100/1000 Ethernet ports
- RS232 port over DB9
- USB port
- DHCP
- Familiar Industry Standard CLI
- Management over IPv6
- Management IP
- SNMP v1,v2,v3
- Web UI
FABRIC MANAGEMENT
- On-board Subnet Manager supporting fabrics
of up to 2k nodes
- Unified Fabric Manager™ (UFM™) Agent
CONNECTORS AND CABLING
- QSFP28 connectors
- Passive copper or active fiber cables
- Optical modules
INDICATORS
- Per port status LED Link, Activity
- System status LEDs: System, fans, power
supplies
- Port Error LED
- Unit ID LED*
PHYSICAL CHARACTERISTICS
- Dimensions: 1.72’’H x 16.84’’W x 27’’D
- Weight: 11kg (24.2 Lb)
POWER SUPPLY
- Dual redundant slots
- Hot plug operation
- Frequency: 50-60Hz, single phase AC
COOLING
- Front-to-rear or rear-to-front cooling option
- Hot-swappable fan unit
POWER CONSUMPTION
- ATIS Weighted Power Consumption: 136W
- Max Power Consumption (class 4) : 281W
- Input Voltage Range: 100-240VAC

Ordering Part Number/Description
MSB7700-ES2F SwitchIB®-based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7Tb/s. 2PS, Standard depth, P2C airflow, RoHS-6
MTEF-PSF-AC-A 460W AC Power Supply w/ P2C air flow
MTEF-PSR-AC-A 460W AC Power Supply w/ C2P air flow
MTEF-FANF-A FAN MODULE W/ P2C air flow
MTEF-FANR-A FAN MODULE W/ C2P air flow
LIC-Fabric-Inspector Enhanced InfiniBand Diagnostics license
