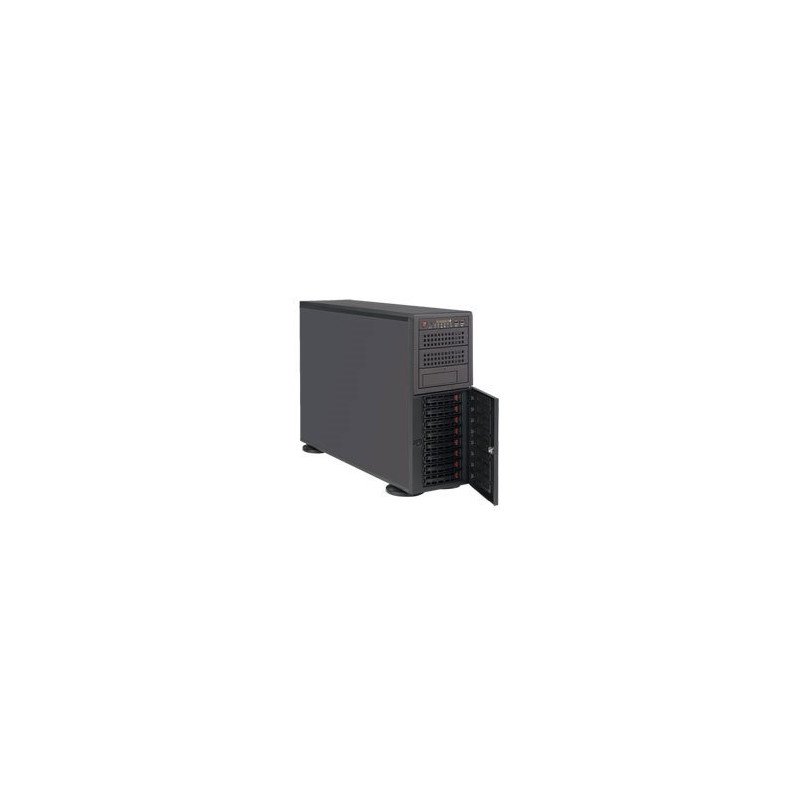

SUPERMICRO Tower/4U Workstation 2x LGA3647, iC621, 16x DDR4, 8x HS (3,5"), 2x2200W (titanium), 2x10GbE, IPMI

Product SKUs

SYS-7049GP-TRT SuperServer 7049GP-TRT (Black)



Motherboard


Super X11DPG-QT


Processor/Cache

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores Up to 28 Cores

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU Support Please refer to: Compatible GPU list



System Memory

Memory Capacity 16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C621 chipset

SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers Intel® X550 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics ASPEED AST2500 BMC



Input / Output

SATA 10 SATA3 (6Gbps) ports

LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
4 USB 2.0 ports (2 rear, 2 via headers)

Video 1 VGA port

Audio 7.1 HD Jacks

Serial Port/Header 2 COM ports (1 rear, 1 Header)



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Intel® Node Manager
IPMI 2.0
SSM, SPM, SUM
SuperDoctor® 5



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 4U Rackmountable / Tower
Optional Rackmount Kit

Model CSE-747BTS-R2K20BP



Dimensions and Weight

Height 18.2" (462mm)

Width 7.0" (178mm)

Depth 26.5" (673mm)

Package 27" (H) x 13" (W) x 38" (D)

Weight Net Weight: 46 lbs (20.9 kg)
Gross Weight: 62 lbs (28.1 kg)

Available Colors Dark Gray



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat & Power Fail LED

Ports 2 Front USB 3.0 Ports



Expansion Slots

PCI-Express 4 PCI-E 3.0 x16 (double-width) slots
2 PCI-E 3.0 x16 (single-width) slots
1 PCI-E 3.0 x4 (in x8 slot)



Drive Bays / Storage

Hot-swap 8 Hot-swap 3.5" drive bays
Optional 4x 2.5" NVMe supported

M.2 1 NVMe based M.2 SSD
Form Factors: 2280, 22110



System Cooling

Fans 4 Heavy duty fans
2 Rear exhaust fans
2 Optional Rear fans (required for Passive GPUs)

Heatsink 2 Active heatsink with optimal fan speed control



Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input 1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)

AC Input Frequency 50-60Hz

Dimension
(W x H x L) 76 x 40 x 336 mm

+12V Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)

5VSB Max: 1A / Min: 0A

Output Type Backplanes (gold finger)

Certification Titanium Level96% Titanium Level
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
