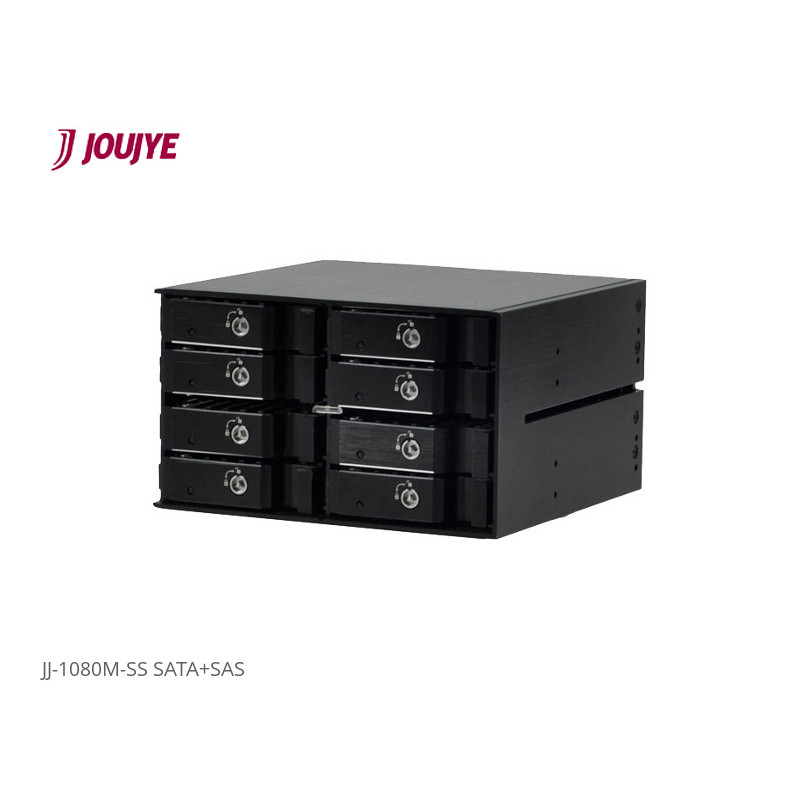

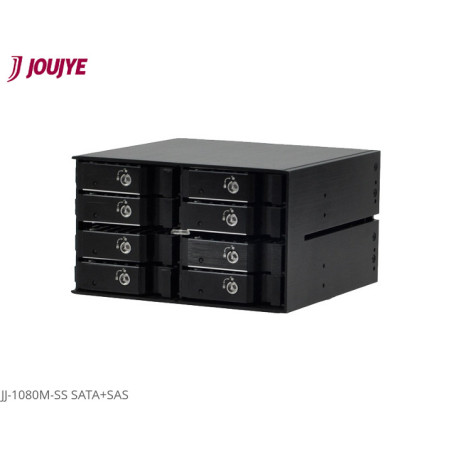

Jou Jye Backplane SAS/SATA 8x 2,5"HDD do 2x 5,25" pozice

For 8 x 2,5 SATA(SAS) HDD/SSD
Simply rugged and high anti-vibration standard and worry-free of the heat and vibration!
Now an IPC industrial standard is also for soho and consummers.
For data backup, duplication, transportation, security, DVR, testing and consummers
Easy drives swap in / out or for tray transportation
Side sliding rails with vibration reducing springs
Metal keylock for security



SPECIFICATIONS:



Model Name

JJ-1080M-SS



Interface

SAS & SATA



Compatible with

SAS I & II or
SATA-I 1.5 Gbit/s, SATA-II 3.0 Gbit/s, SATA-III 6.0 Gbit/s



Bays

2 x 5.25" bay for 8 x 2.5" SAS & SATA HDD or SSDs



HDD size

2.5" SATA I, II, III , SAS I, II or SSD (height upto 14.5mm)



HDD connection

cableless HDD connection



Data connector

7pin data connector x 8



Power connector

SATA power x 2



Performance

SATA-I: upto 1.5Gbps
SATA-II: upto 3.0Gbps
SATA-III: upto 6.0Gbps
SAS-I: upto 3.0Gbps
SAS-II: upto 6.0Gbps



RAID support

Need an optional SAS or SATA Controller



Plug & play

Supports plug & play, hot swappable



Material

Aluminum body with metal trays



Colour

Black



Ventilation

7 x 7cm fan x 1 with stage speed adjustable



LED indication

Individual LED for the 8 drives (Blue for power & and purple blinking for accession. And with separate LED indication for fan failure and overheating.



Extra features

With HDD accessing On/Off Control LED Switch
With LED indication for fan failure and overheating
With extending LED functioning jumper for external connection
Cableless connection



Accessories

Screw bag



Options

-



Dimensions [mm]

160(L) x 146(W) x 86(H)mm



Weight

1.2KG
