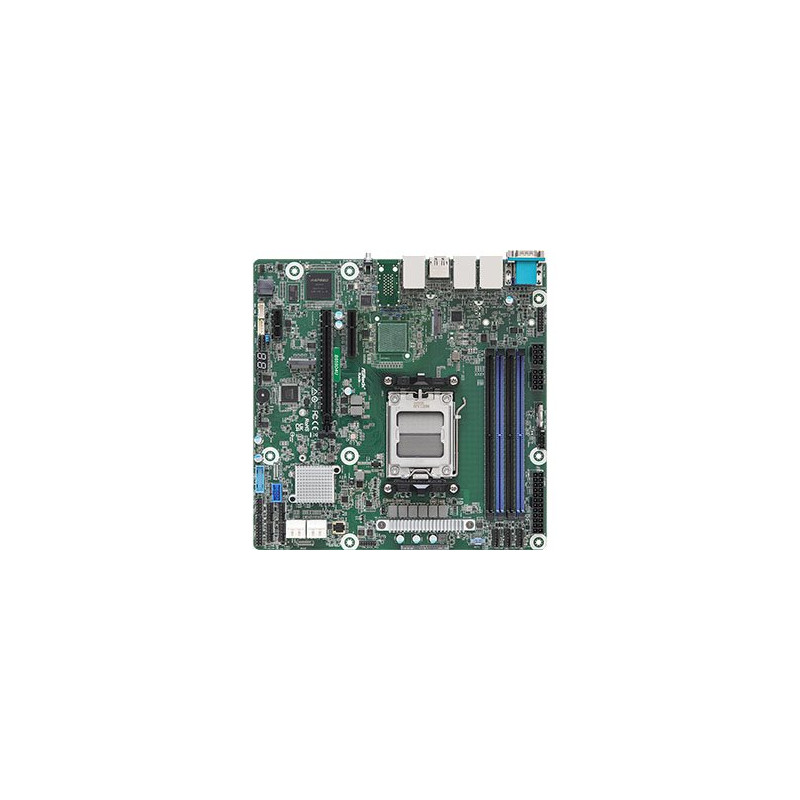

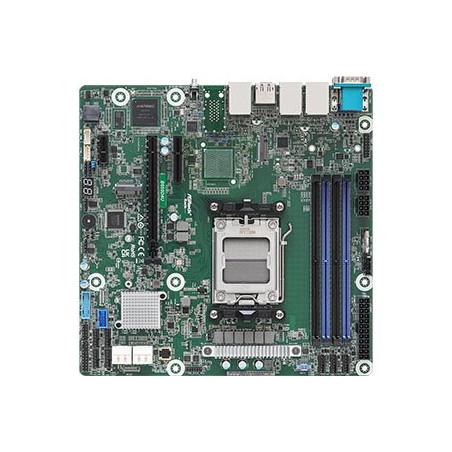

| Physical Status |
| Form Factor |
Micro-ATX |
| Dimensions |
9.6" x 9.6" |
| Processor System |
| CPU |
Supports AMD Ryzen 7000 series Processors |
| Socket |
Single Socket AM5 (LGA 1718) |
| Thermal Design Power |
120W (Air)/170W (Liquid) |
| Chipset |
AMD B650E |
| System Memory |
| Supported DIMM Quantity |
4 DIMM slots (2DPC) |
| Supported Type |
DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM |
32GB |
| Max. DIMM Frequency |
5200 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage |
1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) |
| PCIe x 16 |
SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 |
SLOT7: PCIe5.0 x4 [CPU] |
| PCIe x 1 |
SLOT4: PCIe4.0 x1 [FCH] |
| Other PCIe Expansion Connectors |
| M.2 slot |
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH] |
| SATA/SAS Storage |
| PCH Built-in Storage |
AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin |
| Ethernet |
| Additional GbE Controller |
Intel® i210: 2 RJ45 (1GbE) |
| Server Management |
| BMC Controller |
ASPEED AST2600 |
| IPMI Dedicated GLAN |
1 Realtek RTL8211F for dedicated management GLAN |
| Graphics |
| Controller |
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort |
| Rear I/O |
| UID Button/LED |
1 UID button w/ LED |
| VGA Port |
1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port |
1 DB9 (COM) |
| USB 3.2 Gen1 Port |
4 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (1GbE)
1 dedicated IPMI |
| Internal Connector/Headers |
| Power Connector |
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header |
1 (18-pin): chassis intrusion, system fault LED, LAN activity LED |
| System Panel |
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header |
1 |
| Speaker Header |
1 |
| Buzzer |
1 |
| Fan Header |
7 (6-pin) |
| TPM Header |
1 (13-pin, SPI) |
| SMBus header |
1 |
| PMBus header |
1 |
| IPMB Header |
1 |
| Clear CMOS |
1 |
| Others |
1 (3-pin, 80 debug port header) |
| LED Indicators |
| Standby PWR LED 5vsb |
1 (5VSB) |
| 80 Debug Port LED |
1 |
| Fan Fail LED |
7 |
| BMC heartbeat LED |
1 |
| System BIOS |
| BIOS Type |
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features |
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor |
| Temperature |
CPU, DDR, MB, Card Side, Chipset, M.2 slot |
| Fan |
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage |
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
