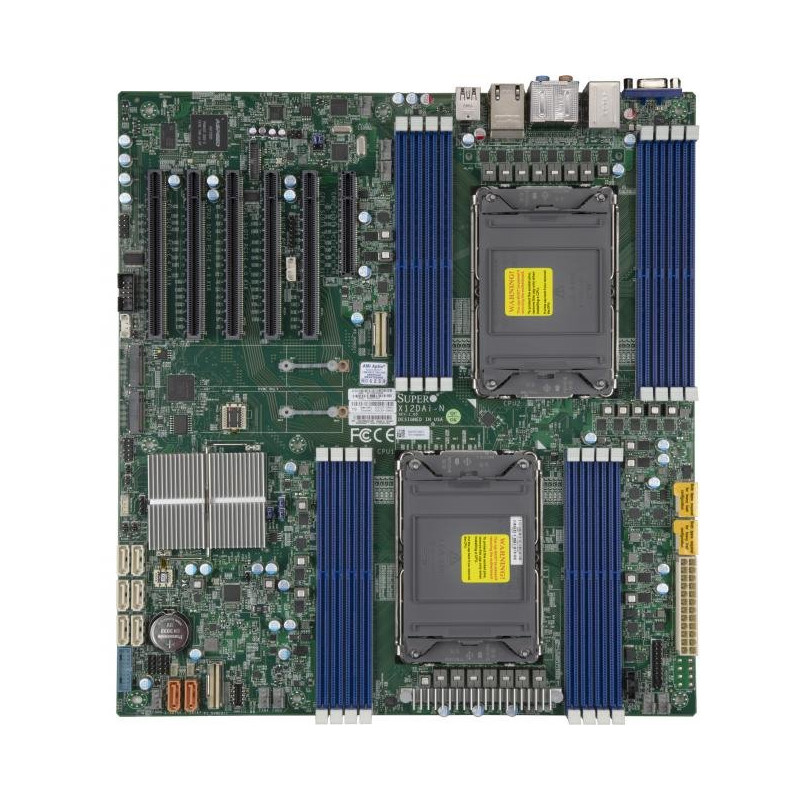

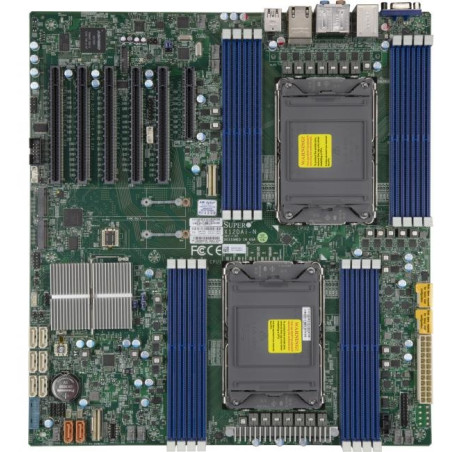

SUPERMICRO MB 2xLGA4189, iC621A, 16x DDR4 ECC, 4xNVMe, 10xSATA3, 2x M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI

Product SKUs

MBD-X12DAi-N6 X12DAi-N6



Physical Stats

Form Factor E-ATX

Dimensions 12" x 13" (30.48cm x 33.02cm)



Processor/Cache

CPU 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s



System Memory

Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 6TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.

Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C621A

SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2600 BMC

Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller

Audio 7.1 HD Audio

Graphics ASPEED AST2600 BMC



Input / Output

USB 6 USB 3.2 Gen1 ports (4 rear + 2 via headers)2 USB 3.2 Gen2 ports (1 Rear Type A

Video Output 1 VGA D-Sub Connector port

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 5 PCI-E 4.0 x16,
1 PCI-E 4.0 x8

M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI



Management

Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor® 5, Watchdog



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 8 -fan status, CPU, CPU temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment

LED CPU / System Overheat LED, BMC/IPMI Heartbeat LED, Power LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, RoT, UID, WOL



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
