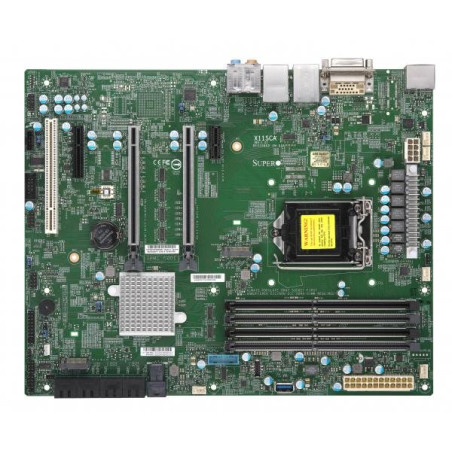

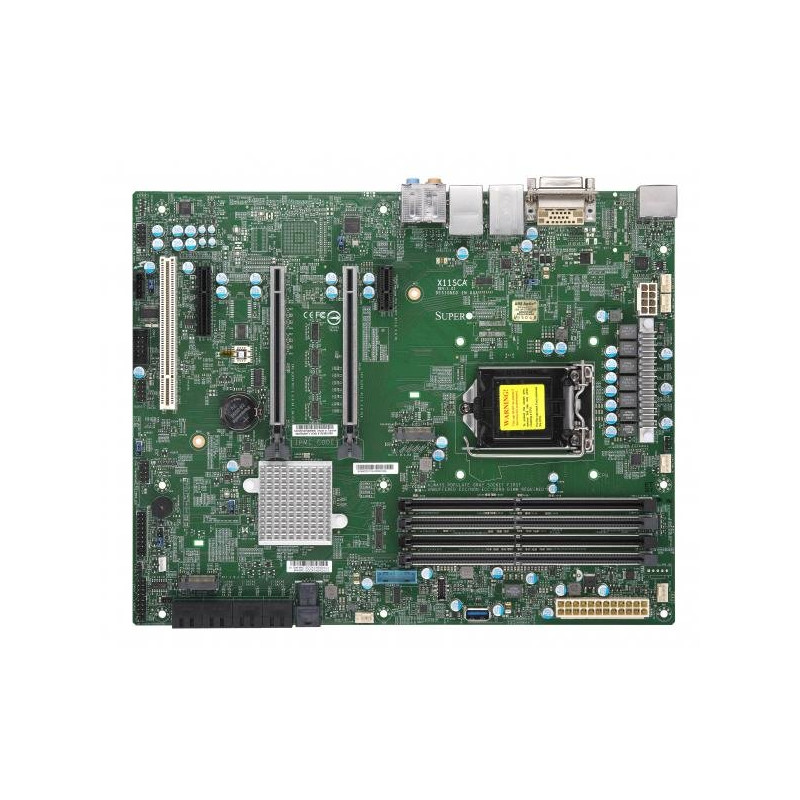

SUPERMICRO MB 1xLGA1151 (Xeon E-2xx,core), C246,4xDDR4,8xSATA3,2xM.2,4xPCIe 3.0 (x16,x8,x4,x1),HDMI,DP,DVI,Audio,2x LAN

Product SKUs

MBD-X11SCA X11SCA



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP



System Memory

Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM

DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

*Future support for 128GB via a BIOS update


On-Board Devices

Chipset Intel® C246

SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro

Audio ALC 888S HD Audio

Graphics Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only)



Input / Output

LAN 2 1GbE LAN ports

USB 2 USB 2.0 ports (2 via headers)
4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 via header, 1 Type A)

Video Output 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only)

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8

1 - 5V PCI 32bit

M.2 M.2 Interface: 2 PCI-E 3.0 x4
Form Factor: 2242/2260/2280/22110
Key: M-Key
M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2



System BIOS

BIOS Type UEFI 128Mb



Management

Software AMT, SuperDoctor® 5, vPro, Watchdog

System Management Software SuperDoctor 5
version. 5

Power Configurations ACPI Power Management
ATX Power connector
Power-on mode for AC power recovery
Keyboard Wakeup from Soft-Off



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, VBAT

FAN 5 fans with tachometer status monitoring

Temperature N/A

LED Standby alert LED

Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCA 1 X11SCA Motherboard
SATA cable CBL-0044L 2 SATA 3 Cable
IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield
M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCA 1 X11SCA Motherboard
SATA cable CBL-0044L 6 SATA 3 Cable
IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield
M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder
Quick Reference Guide MNL-2087-QRG 1 X11SCA Series Quick Reference Guide



Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9671V 1
TPM security module (optional, not included) AOM-TPM-9671V-C 1
TPM security module (optional, not included) AOM-TPM-9670V 1
TPM security module (optional, not included) AOM-TPM-9670V-C 1



Chassis (Optimized for X11SCA)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC732D4-500B
SC732D4-903B
SC732D3-1200B
SCGS5A-753K
SCGS5A-753B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SCA)

Server Name

SYS-5039C-T
