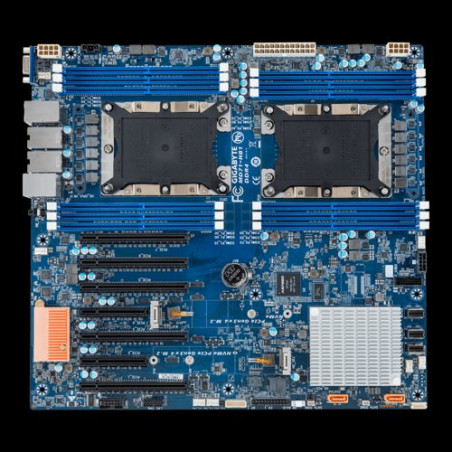

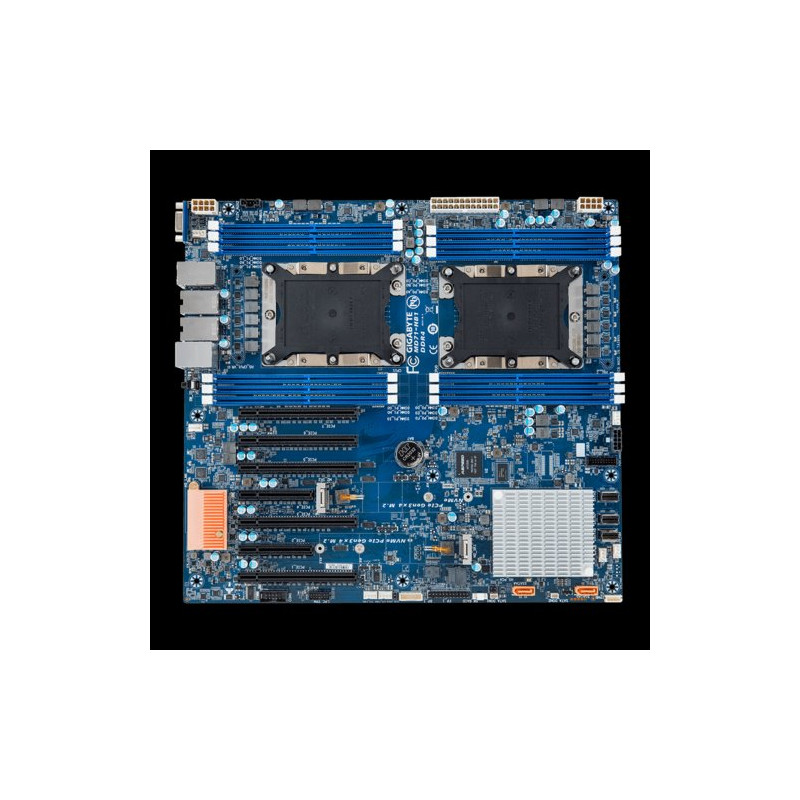

Gigabyte MB MD71-HB1, 2x 3647, 12 x DIMMs, 7x PCIe 3.0, 12x SATA, 2x 10Gb + 2x 1Gb/s LAN, IPMI

Form Factor
E-ATX
305W x 330D (mm)
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 3647
Socket P
Recommended Fan module: Dynatron B5
CPU TDP up to 205W
Chipset
Intel® C622 Express Chipset
Memory
12 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2933/2666/2400 MHz

NOTE:
Memory frequency 2933MHz is for 2nd Generation Intel® Xeon® Scalable Processors only
LAN
2 x 10Gb/s BASE-T LAN ports (1 x Intel® X557-AT2)
2 x 1Gb/s LAN ports
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
-
SAS
-
SATA
3 x SlimSAS for 12 x SATA III 6Gb/s ports
2 x 7-pin SATA III 6Gb/s with SATA DOM supported
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_5: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_4: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_1, shared with Slot_5
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_0, shared with M.2 PCIe x4 bus
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0

2 x M.2 slots:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-22110/2280 cards
- From CPU_0
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x SATA DOM power pin headers
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x COM header
1 x LPC TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header
Rear I/O
2 x USB 3.0
1 x VGA
4 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
OS Compatibility
For Skylake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

For Cascade Lake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Board Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MD71-HB1
1 x I/O shield
1 x Quick Installation Guide
1 x SlimSAS for 8 x SATAIII 6Gb/s cables
2 x Non-Fabric CPU carrier
Single Box dimensions: 409 x 355 x 78 mm (TBD)
Carton dimension: 729 x 415 x 432 mm(TBD)
Quantity: 10 x single box with one carton
Bulk Packaging Content
10 x MD71-HB1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MD71HB1MR-00
Bulk: 9MD71HB1NR-00
