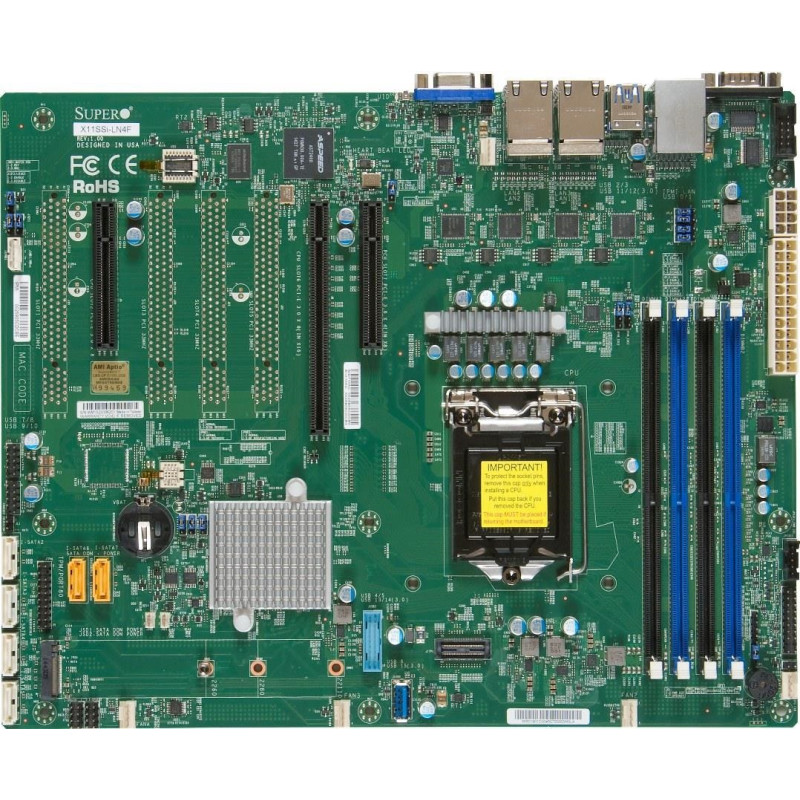

SUPERMICRO MB 1xLGA1151, iC236,DDR4,6xSATA3,PCIe 3.0 (1 x8, 1 x8 (in x16), 1 x4 (in x8)), 1x M.2 NGFF, 4xLAN, IPMI

Product SKUs

MBD-X11SSi-LN4F X11SSi-LN4F



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support 80W

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series



System Memory

Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2400 BMC

Network Controllers Quad LAN with Intel® Ethernet Controller I210-AT

Graphics Aspeed AST2400 BMC



Input / Output

USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot)

M.2 M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2260, 2280, 22110
Key: M-Key
Double Height Connector



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
PCI 2.3
Plug and Play (PnP)
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
USB Keyboard support



Management

Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, UID/Remote UID

Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
