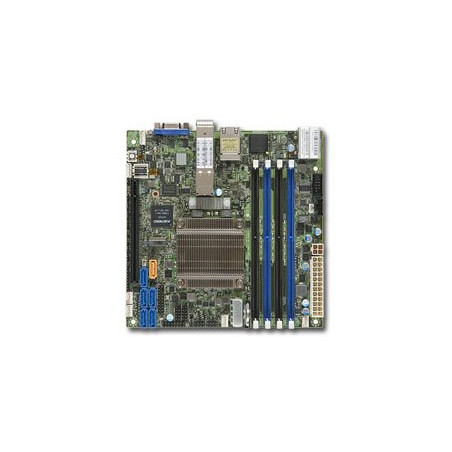

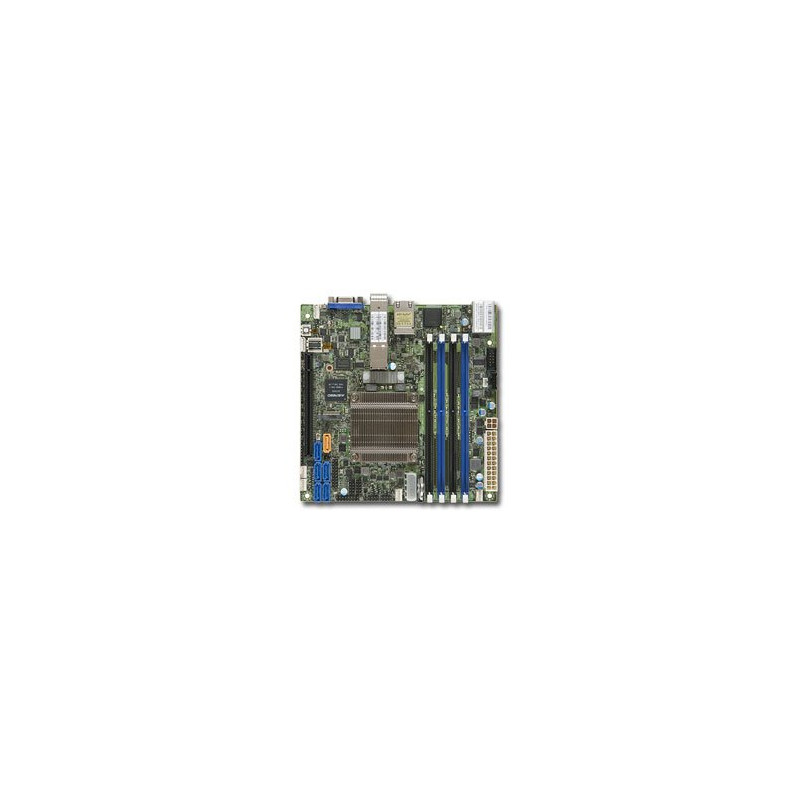

SUPERMICRO mini-ITX MB Xeon D-1587 (16-core), 4x DDR4 ECC DIMM,6xSATA1x PCI-E 3.0 x16, 2x10Gb SFP+, 2x 1Gb LAN,IPMI

Product SKUs

MBD-X10SDV-16C-TLN4F X10SDV-16C-TLN4F



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU Intel® Xeon® Processor D-1587.
Single Socket FCBGA1667 supported, CPU TDP support 65W

Cores / Cache 16 cores, 32 threads / 24MB cache



System Memory

Memory Capacity Up to 128GB Registered ECC RDIMM
Up to 64GB Unbuffered ECC/non-ECC UDIMM, in 4 DIMM slots

Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2
Dual LAN with 10Gbase-T
Built in with D-1500 SoC
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 6 SATA3 (6Gbps) port

LAN 2 RJ45 10GBase-T ports
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 2.0 ports (4 headers, Type A))
2 USB 3.0 ports (2 rear)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16
Support for SATA devices

M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
UEFI 2.4
SMBIOS 2.8



Management

Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog

System Management Software SUM

Power Configurations ACPI Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature

FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, PECI, Thermal Monitor 2 (TM2) support

LED CPU / System Overheat LED, UID/Remote UID

Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
