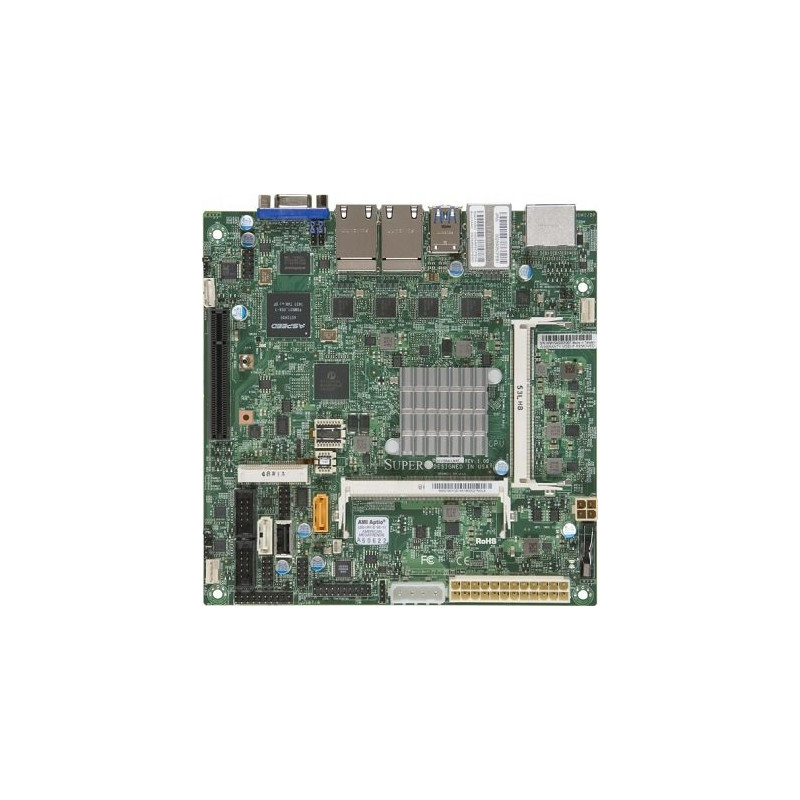

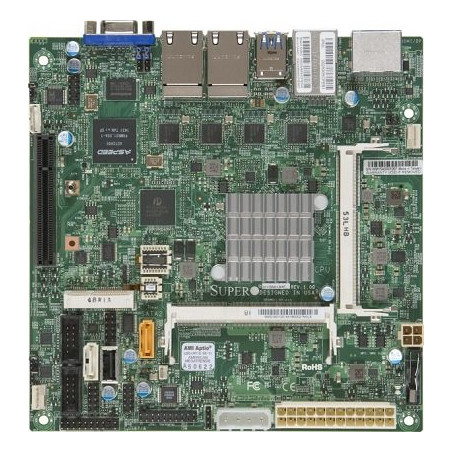

SUPERMICRO MB N3700 SoC, 2x ,SODIMM DDR3, 2x SATA3, PCIe 3.0 x1 in x8, IPMI , 4x LAN, audio

Product SKUs

MBD-X11SBA-LN4F X11SBA-LN4F



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU Intel® Pentium? Processor N3710.
Single Socket FCBGA1170 supported, CPU TDP support 6W

Cores / Cache 4 cores, 4 threads / 2MB L2 cache



System Memory

Memory Capacity Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1600MHz, in 2 DIMM slots
Max total memory up to 8GB only

Memory Type 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes 2GB, 4GB, 8GB

Memory Voltage 1.35V



On-Board Devices

Chipset System on Chip

SATA SoC controller for 2 SATA3 (6 Gbps) ports;

IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controllers Quad LAN with Intel® Ethernet Controller I210-AT
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Audio ALC 888S HD Audio

Graphics SoC, Aspeed AST2400 BMC
Intel HD Graphics via SoC



Input / Output

SATA 2 SATA3 (6Gbps) port

LAN 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 7 USB 2.0 ports (2 rear + 4 headers + 1 Type A)
2 USB 3.0 ports (2 rear)

Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port,
Intel HD Graphics via SoC

Serial Port / Header 2 COM Ports (2 headers)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 2.0 x1 (in x8 slot)
1 Mini-PCI-E with mSATA support



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 5.0
UEFI 2.3.1
Plug and Play (PnP)
SMBIOS 2.7.1
DMI 2.3
USB Keyboard support
RTC (Real Time Clock) Wakeup



Management

Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Memory, Memory Voltages, Supports system management utility, System level control, System temperature, VBAT

FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, System level control, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

LED Standby alert LED, CPU / System Overheat LED

Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
