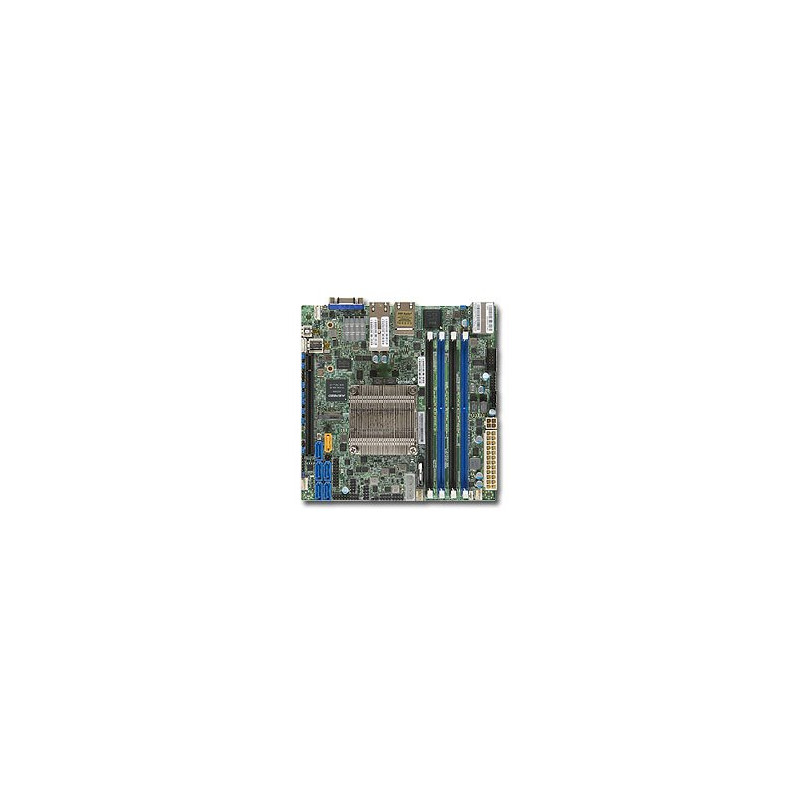

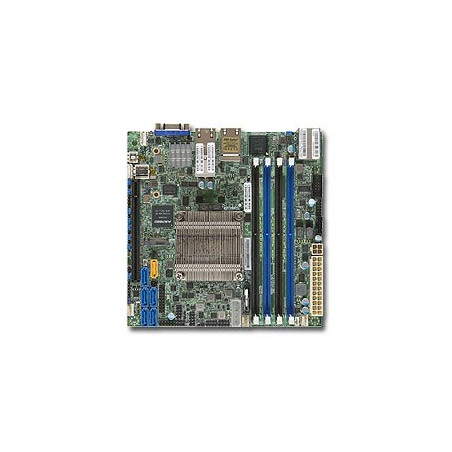

SUPERMICRO mini-ITX MB Xeon D-1537 (8-core), 4x DDR4 ECC RDIMM,6xSATA3.0, 1x PCI-E 3.0 x16, 2x10GbE SFP+,2x1GbE,IPMI

Product SKUs

MBD-X10SDV-8C-TLN4F+ X10SDV-8C-TLN4F+



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU Intel® Xeon® Processor D-1537.
Socket FCBGA1667 supported, CPU TDP support 35W

Cores / Cache 8 cores, 16 threads / 12MB cache



System Memory

Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots

Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
RSTe

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controllers Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 1GbE LAN via Intel® i350-AM2
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 6 SATA3 (6Gbps) port

LAN 2 10G SFP+ LAN ports
2 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 2.0 ports (2 headers, Type A))
2 USB 3.0 ports (2 rear)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header

Others GPIO and SMbus headers







Expansion Slots

PCI-E 1 PCI-E 3.0 x16

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key
Support SATA devices



System BIOS

BIOS Type 128Mb SPI Flash with AMI BIOS

BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
SMBIOS 2.8
UEFI 2.4



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog

System Management Software IPMIView for Linux/Windows
IPMICFG
SUM
SuperDoctor 5

Power Configurations ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control

FAN 4x 4-pin fan headers (up to 4 fans), Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control

Temperature CPU thermal trip support, I2C temperature sensing logic, Monitoring for CPU and chassis environment, PECI

LED CPU / System Overheat LED

Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
