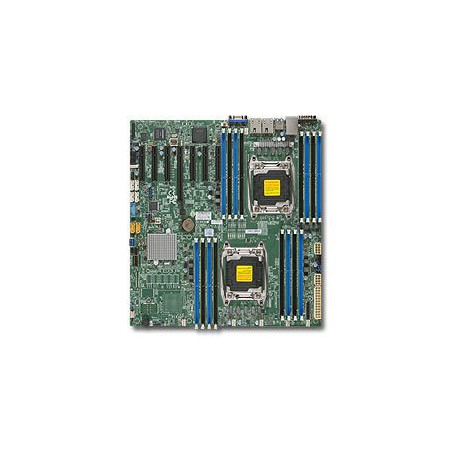

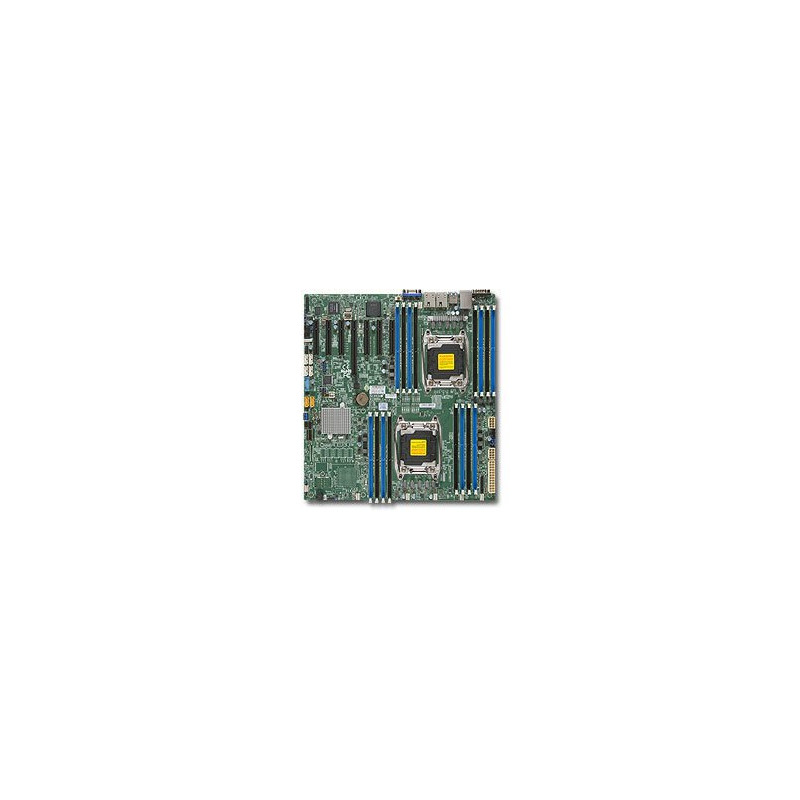

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC R,10xSATA3 (PCI-E 3.0/2,4,1(x16,x8,x4),2x 10GbE LAN,IPMI

Product SKUs

MBD-X10DRH-iT X10DRH-iT



Physical Stats

Form Factor E-ATX

Dimensions 12" x 13" (30.48cm x 33.02cm)



Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Cores / Cache Up to 22 cores † / Up to 55MB† cache

Note † BIOS version 2.0 or above is required

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity Up to 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C612

SATA RAID 0,1,5,10
Intel® C612 controller for 6 SATA3 (6 Gbps) ports;

AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual LAN with 10GBase-T with Intel® X540 10GbE Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 10 SATA3 (6Gbps) port

LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 2.0 ports (2 rear + 2 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial

TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
6 PCI-E 3.0 x8



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1



Management

Software Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages

FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
