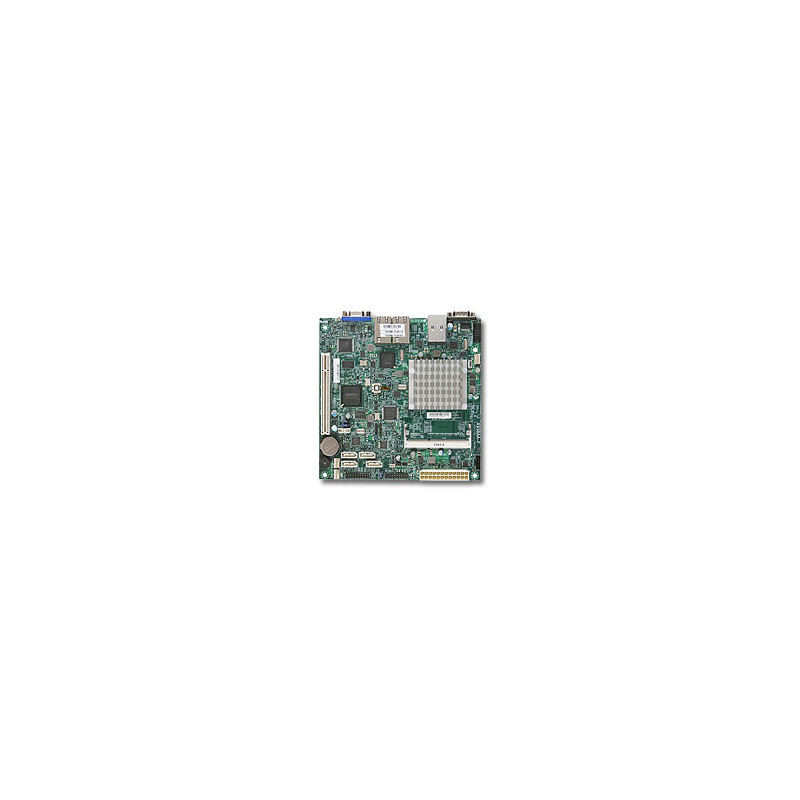

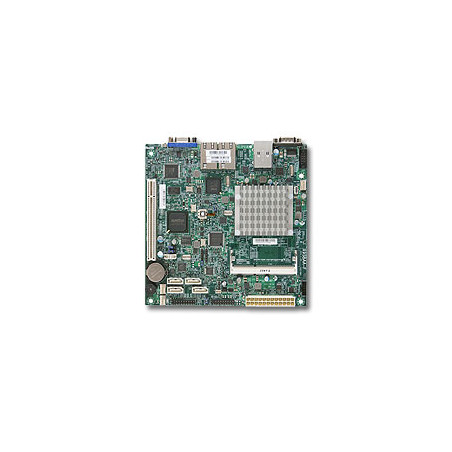

SUPERMICRO ITX MB Atom S1260, DDR3 ECC SODIMM,4xSATA3,1xPCI 32bit, RAID 0,1, 2xLAN,IPMI

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.

MBD-X9SBAA-F -O ##X9SBAA-F (Retail Pack)

MBD-X9SBAA-F -B ##X9SBAA-F (Bulk Pack)



Physical Stats

Form Factor ##Mini-ITX

Dimensions ##6.7" x 6.7" (17cm x 17cm)



Processor/Cache

CPU ##Intel® Atom™ S1260 (Centerton)
##System-on-Chip
##2.0GHz
##2C/4T, 64-bit, VT-x, HT



System Memory

Memory Capacity ##1x 204-pin DDR3 SO-DIMM socket
##Supports up to 8GB DDR3 ECC memory

Memory Type ##1333/1066/800MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs

DIMM Sizes ##8GB, 4GB, 2GB

Memory Voltage ##1.5 V, 1.35 V



On-Board Devices

SATA ##Marvell 88SE9230
##SATA 3.0 (6Gb/s)
##Raid 0,1 support (Windows Only)

Network Controllers ##Intel i350AM2 Gigabit Ethernet
##Virtual Machine Device Queues reduce I/O overhead
##Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
##1x Realtek RTL8201N PHY (dedicated IPMI)s

USB ##Renesas uPD720201

IPMI ##Nuvoton WPCM450 BMC

Video ##Matrox G200eW



Input / Output

Serial ATA ##4x SATA 3.0 ports

LAN ##2x RJ45 Gigabit Ethernet LAN ports
##1x RJ45 Dedicated IPMI LAN port

USB ##2x USB 3.0 ports

Serial Port ##2 Fast UART 16550 Serial Port (1 via header and 1 at rear)

DOM ##DOM power connector support (Disk on Module)

VGA ##1x VGA Port

Others ##TPM header



Chassis (Optimized for X9SBAA-F)

1U Chassis ## CSE-504-203B




SuperServer(s) with X9SBAA-F

Model(s) ## SYS-5017A-EF



Expansion Slots

PCI ##1x 32-bit PCI slot (3.3V)



System BIOS

BIOS Type ##64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features ##Plug and Play (PnP)
##DMI 2.3
##PCI 2.3
##ACPI 1.0 / 2.0 / 3.0 / 4.0
##USB Keyboard support
##SMBIOS 2.7.1
##UEFI



Management

Software ##SuperDoctor® III
##Watch Dog
##NMI

Power Configurations ##ACPI / ACPM Power Management
##Main Switch Override Mechanism



PC Health Monitoring

Voltage ##Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.

FAN ##Total of 3x 4-pin fan headers
##3x fans with tachometer status monitoring
##Status monitor for speed control
##Status monitor for on/off control
##Low noise fan speed control
##Pulse Width Modulated (PWM) fan connectors

Temperature ##Monitoring for CPU and chassis environment
##CPU thermal trip support

LED ##System Overheat LED

Other Features ##Chassis intrusion detection
##Chassis intrusion header
