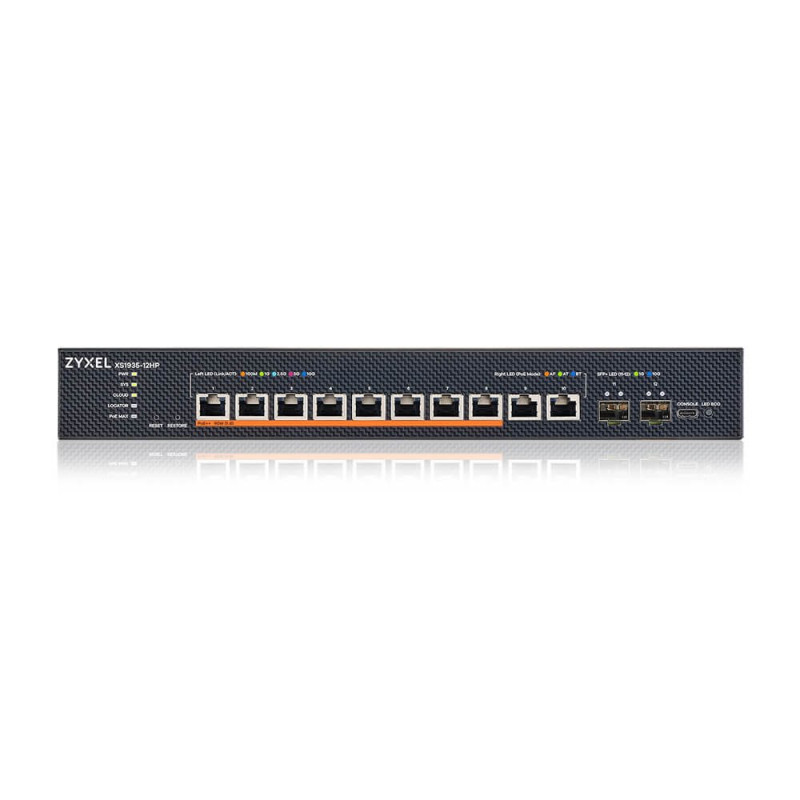

ZyXEL XS1935-12HP, 8-port Multi-Gigabit Smart Managed PoE 375Watt 802.3BT Switch, 2x 10GbE, 2 SFP+ Uplink

Description

Product name



8-port 10G Multi-Gig PoE Lite-L3 Smart Managed Switch with 4 10G Uplink



Switch class



Smart Managed



Port Density

Total port count



12



100M/1G/2.5G/5G/10G Ethernet (RJ-45)



10



10-Gigabit SFP+



2



PoE

PoE ports



8



Total PoE budget (watts)



400



IEEE 802.3bt PoE++ (90W)



Port 1-8



Performance

Switching capacity (Gbps)



240



Forwarding rate (Mpps)



178.5



Packet buffer (byte)



2MB



MAC address table*



16K



Jumbo frame (byte)



12KB



L3 forwarding table*(IPv4/IPv6)



Max.512 IPv4 entries;

Max.512 IPv6 entries



Routing table*



32



VLAN routing



Yes



IP interface (IPv4/IPv6)



32/32



Flash/RAM



32MB/256MB



Power

Input



100 - 240 V AC, 50/60 Hz



Min. power consumption (watts)

Without any port connection



26.4



Max. power consumption (watts)

All ports full load without PoE



64.5



Max. power consumption (watts)

All ports full load with PoE



511.6



Physical Specifications

Item



Dimensions (WxDxH)(mm/in.)

330 x 230 x 44/12.99 x 9.06 x 1.73



Weight (kg/lb.)

2.8/6.17



Included accessories



Power cord

Rack mounting kit

ESD/Surge Protections

Ethernet port surge protection



2KV



Power supply surge protection



Line-GND: 2KV



Line-Line: 1KV



ESD protection (air/contact)



8KV/6KV



Environmental Specifications

Operating



Temperature

-20°C to 50°C/-4°F to 122°F



Humidity

5% to 95% (non-condensing)



Storage



Temperature

-40°C to 70°C/-40°F to 158°F



Humidity

5% to 95% (non-condensing)



MTBF (hr @ 25°C)



261,963



Heat dissipation (BTU/hr)



1654.88



Acoustic noise (min/max, dBA)



26.367/49.7
