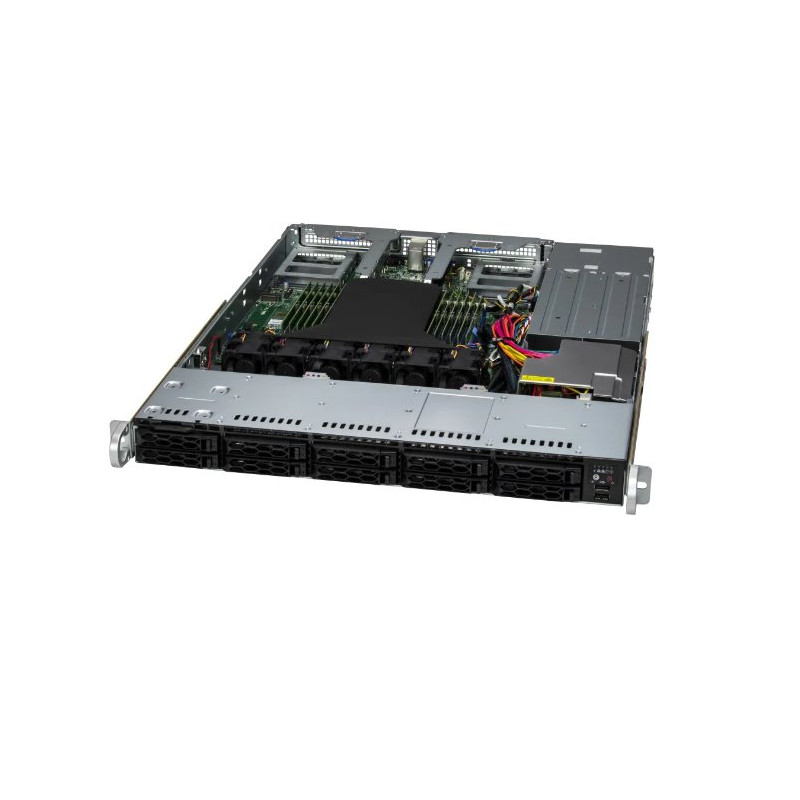

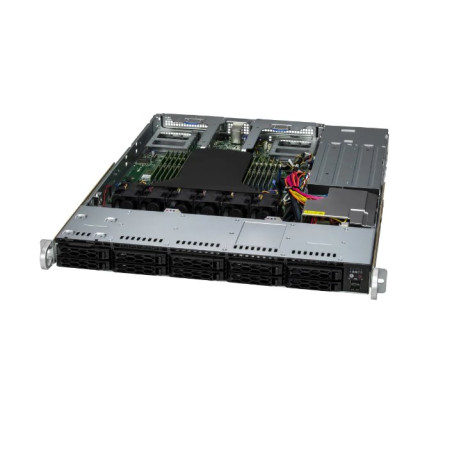

SUPERMICRO A+ Server 1U AS-1115CS-TNR Single AMD EPYC 9004/9005* Series Processor, Support up to DDR5 12 DIMM slots (1DP

Product SKUs A+ Server AS -1115CS-TNR Standard version with PWS-860P-1R2 (Platinum Level) A+ Server AS -1115CS-TNR-EU European version with PWS-861A-1R (Titanium Level) A+ Server AS -1115CS-TNR-G1 Gold Series version with pre-configured components Motherboard Super H13SSW Processor CPU Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) Core Count Up to 160C/320T Note Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details. * This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP GPU Max GPU Count Up to 2 single-width GPUs Supported GPU NVIDIA PCIe: L4, A2 View GPU Options CPU-GPU Interconnect PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect PCIe System Memory Memory Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) View Memory Options Memory Voltage 1.1V On-Board Devices Chipset System on Chip Network Connectivity Via AIOM View AIOM Options View AOC Options Input / Output LAN 1 RJ45 1 GbE Dedicated BMC LAN port USB 2 USB 3.0 ports(rear) 2 USB 2.0 ports(front) Video 1 VGA port Serial 1 COM port(Rear) TPM 1 TPM header System BIOS BIOS Type AMI 32MB SPI Flash ROM BIOS Features ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support Management Software SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! Power configurations ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, Security Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown PC Health Monitoring FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Voltage System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support Chassis Form Factor 1U Rackmount Model CSE-LB16TS-R860AWP-A Dimensions and Weight Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) Package 7.8" (H) x 23.8" (W) x 32.4" (D) Weight Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg) Available Color Black front & sliver body Front Panel LED Drive activity Network activity Power status Universal Information (UID) Buttons Power On/Off Universal Information (UID) Expansion Slots PCI-Express (PCIe) Configuration Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) View AOC Options Drive Bays / Storage Drive Bays Configuration Default: Total 10 bays 10 front hot-swap 2.5" SATA drive bays Option A: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays Option B: Total 10 bays 10 front hot-swap 2.5" SAS* drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options M.2 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options System Cooling Fans 6x 4cm heavy duty fans with optimal fan speed control Air Shroud 1 Air Shroud Power Supply 2x 860W   2x 860W 2x 860W Redundant Platinum Level (94%) power supplies Dimension (WxHxL) 54.5 x 40.25 x 322 mm Input 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12V Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vdc-240Vdc) Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SB Max: 4A / Min: 0A Output Type Backplanes (gold finger) Operating Environment Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
