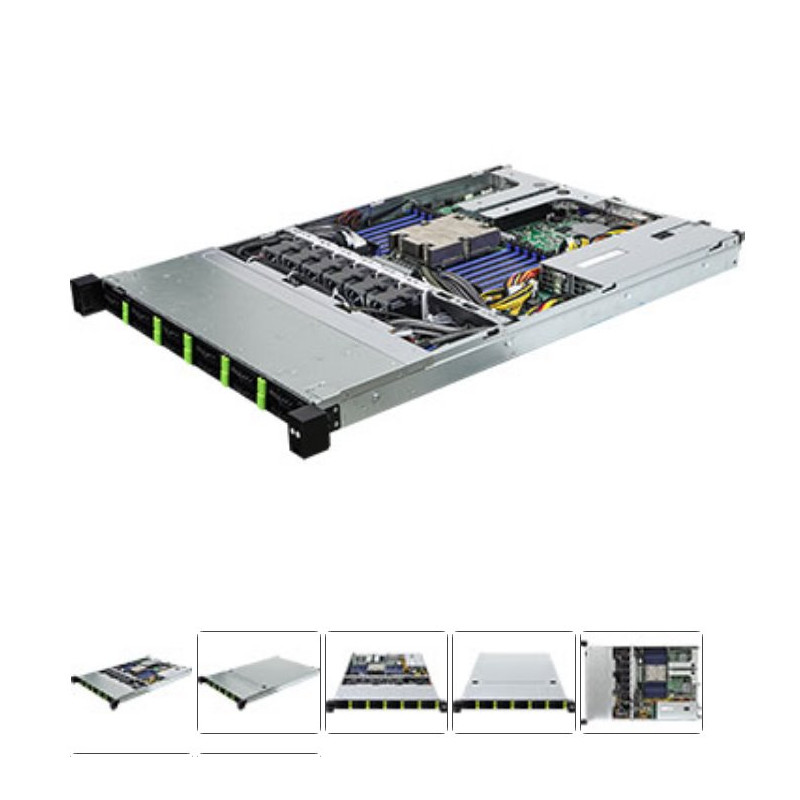

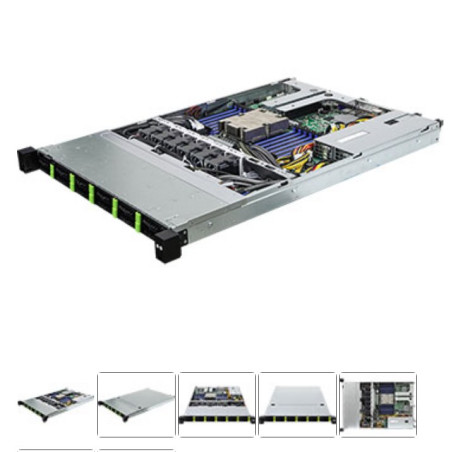

| System |
| Form Factor |
1U Rackmount |
| Dimensions |
676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'') |
| Support MB |
GENOAD24QM3-2L2T/BCM |
| Front Panel |
| Buttons |
Power, Reset, ID buttons |
| LEDs |
Power, LAN 1/2, System Event, ID LEDs |
| I/O Ports |
1 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage |
| Front Side Drive Bay |
12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays |
| Front Side Backplane |
12-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards |
| Internal Side |
2 M-key (PCIe5.0 x4); support 22110/2280/2260 form factor |
| Power Supply |
| Type |
1+1 Slim PSU |
| Output Watts |
1000W |
| Efficiency |
80-PLUS Platinum |
| AC Input |
100-240V, 60/50Hz |
| System Fan |
| Fan |
6 PWM hot-swap 40 x 56 mm fans |
| Processor System |
| CPU |
Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Socket |
Single Socket SP5 (LGA 6096) |
| Thermal Design Power |
Up to 300W |
| Chipset |
System on Chip |
| System Memory |
| Supported DIMM Quantity |
24 DIMM slots (2DPC) |
| Supported Type |
Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM |
RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency |
RDIMM: 4800 MHz (1DPC)
RDIMM 1R: 4000 MHz (2DPC)
RDIMM 2R: 3600 MHz (2DPC)
RDIMM-3DS: 4800 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage |
1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) |
| PCIe x 16 |
Rear: 2 FHHL PCIe5.0 x16 |
| Ethernet |
| Additional GbE Controller |
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel® i210: 2 RJ45 (1GbE) |
| OCP slot |
1 OCP NIC 3.0 (PCIe5.0 x16) |
| Server Management |
| BMC Controller |
ASPEED AST2600 |
| IPMI Dedicated GLAN |
1 Realtek RTL8211F for dedicated management GLAN |
| Graphics |
| Controller |
ASPEED AST2600 |
| VRAM |
DDR4 512MB |
| Rear I/O |
| UID Button/LED |
1 UID button w/ LED |
| VGA Port |
1 DB15 (VGA) |
| USB 3.2 Gen1 Port |
2 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI |
| System BIOS |
| BIOS Type |
AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features |
ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor |
| Temperature |
CPU, MB, Card side, TR1 Temperature sensing |
| Fan |
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control |
| Voltage |
VDDCR_CPU,VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
