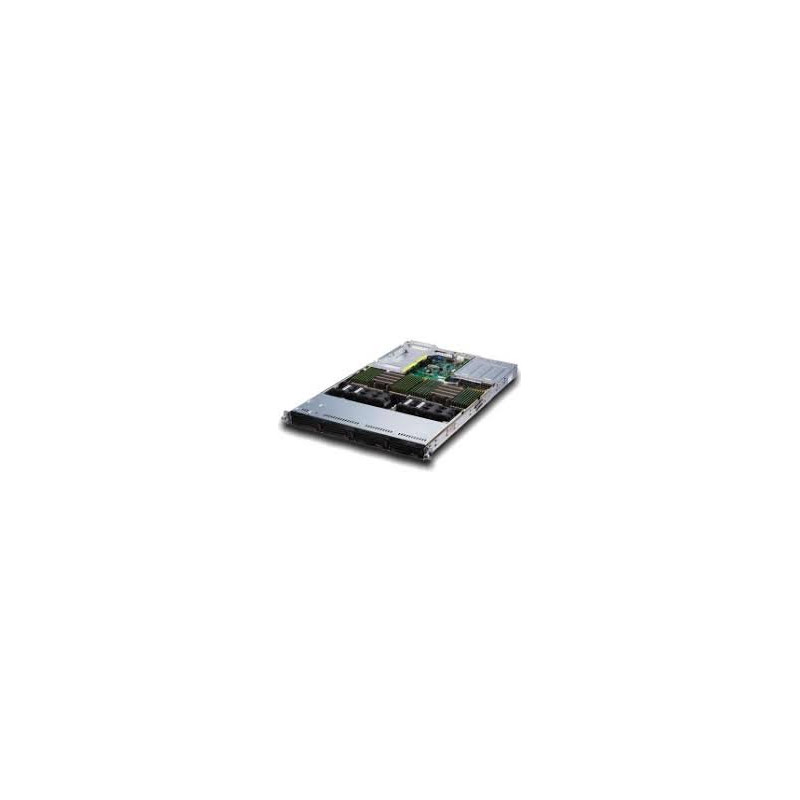

SUPERMICRO 1U AMD Ultra server 2x SP3, 32x DDR4, 2x PCIe x16, 2x PCIe x8, 4x 1Gb, IPMI

Specifications ?






Product SKUs

AS -1023US-TR4 A+ Server 1023US-TR4



Motherboard

H11DSU-iN


Processor/Chipset

CPU Dual AMD EPYC™ 7001/7002* series Processors
(* Board revision 2.x required)
Socket SP3
Supports CPU cTDP up to 280W**

Cores Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)

Chipset System on Chip (SoC)

Note ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


System Memory

Memory Capacity 32 DIMM slots
Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus

Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

VGA ASPEED AST2500 BMC



Expansion Slots

1U 2 PCI-E x16 (FH/HL 9.5") slots
2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)


Input / Output

SATA 4 SATA3 (6 Gbps) ports

LAN Quad Gigabit LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 3 USB 3.0 ports (2 rear + 1 Type A)

VGA 1 VGA port

SAS 4 SAS3 ports support via optional Add-on Card

NVMe 4 NVMe support with optional cables

Others 1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header



System BIOS

BIOS Type AMI 128Mb SPI Flash EEPROM

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1







Chassis

Form Factor 1U

Model CSE-819UTS-R1K02P-T



Dimensions

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 29" (737mm)

Weight Net Weight: 26 lbs (11.8 kg)
Gross Weight: 41 lbs (18.6 kg)



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED



Drive Bays

Hot-swap Four 3.5" Hot-swap SATA drive bays



Backplane

HDD Backplane Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD



System Cooling

Fans 8 heavy-duty PWM fans with optimal fan speed control

Air Shroud 2 Air Shroud



Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power 800W/1000W

Dimension
(W x H x L) 73.5 x 40 x 203 mm

Input 100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
200-240Vdc / 7 - 5A (for CCC only)

+12V Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
Max: 83A / Min: 0A (200-240Vdc)

12Vsb Max: 2.1A / Min: 0A

Output Type 25 Pairs Gold Finger Connector

Certification Titanium Level96% Titanium Level
[ Test Report ]


PC Health Monitoring

CPU Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic

LED CPU / System Overheat LED

Other Features Chassis Intrusion Detection
Chassis Intrusion Header



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
