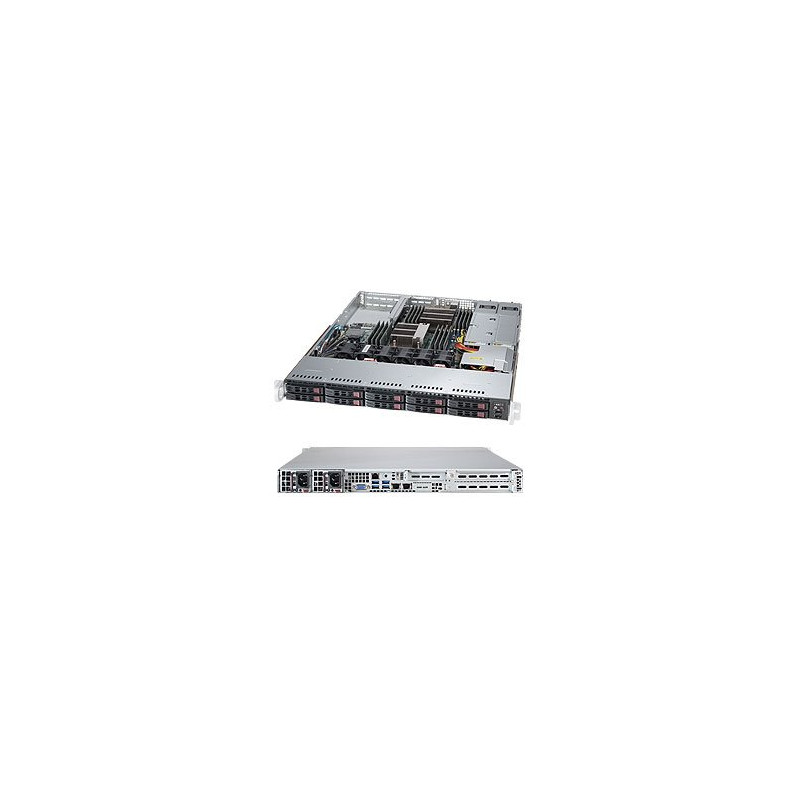

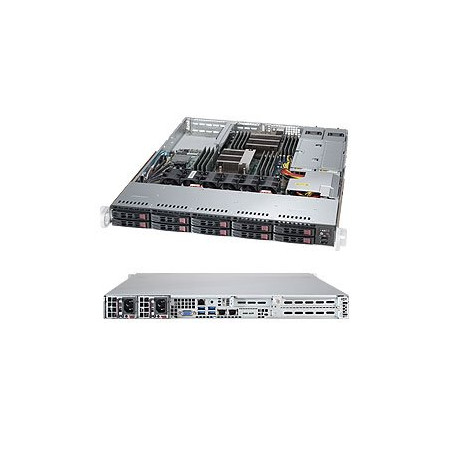

SUPERMICRO 1U server 2x LGA3647, iC622, 12x DDR4 ECC R, 10x 2,5 HS(8xSATA+2xSATA/NVMe), M.2, 2x750W, 2x10GbE, IPMI, WIO

Product SKUs

SYS-1029P-WTRT SuperServer 1029P-WTRT (Black)



Motherboard


Super X11DDW-NT


Processor/Cache

CPU Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W*

Cores Up to 28 Cores

Note * Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244, 6246, 6250 and 6256.

Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.


System Memory

Memory Capacity 12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM††

Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset Intel® C622 chipset

SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers Dual LAN with 10Gbase-T from C622

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video ASPEED AST2500 BMC



Input / Output

SATA 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports

LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 6 USB 3.0 ports (4 rear, 2 front via header)

Video 1 VGA port

DOM 2 SuperDOM (Disk on Module) ports



System BIOS

BIOS Type AMI 32Mb SPI Flash ROM



Management

Software Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management



PC Health Monitoring

CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors







Chassis

Form Factor 1U Rackmount

Model CSE-116AC2-R706WB2



Dimensions and Weight

Width 17.2" (437mm)

Height 1.7" (43mm)

Depth 23.5" (597mm)

Gross Weight 46 lbs (20.9kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
UID button

LEDs Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED



Expansion Slots

PCI-Express 2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E 3.0 x4 NVMe M.2 slot


(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)


Drive Bays

Hot-swap 8 SATA3 (6Gbps) ports and 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)



Backplane

SAS/SATA HDD Backplane


System Cooling

Fans 4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling



AC/DC240V Input Redundant Power Supply

700W/750W Redundant Power Supplies with PMBus
Total Output Power 700W/750W

Dimension
(W x H x L) 54.5 x 40.25 x 320 mm

Input 100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)

+12V Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)

+5V sb Max: 3A / Min: 0A

Output Type Gold Finger Connector Mating with Molex 45984-4343

Certification Platinum Level Certified
Platinum Certified
[ Test Report ]


Operating Environment

RoHS RoHS Compliant

Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
