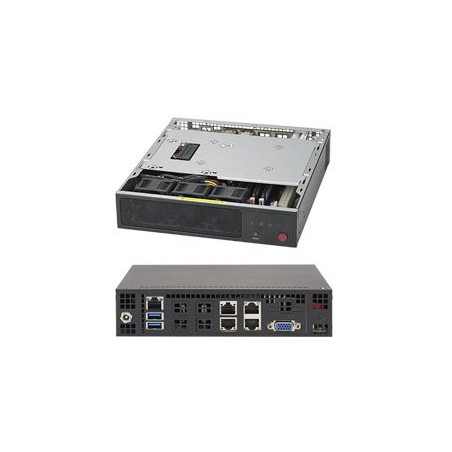

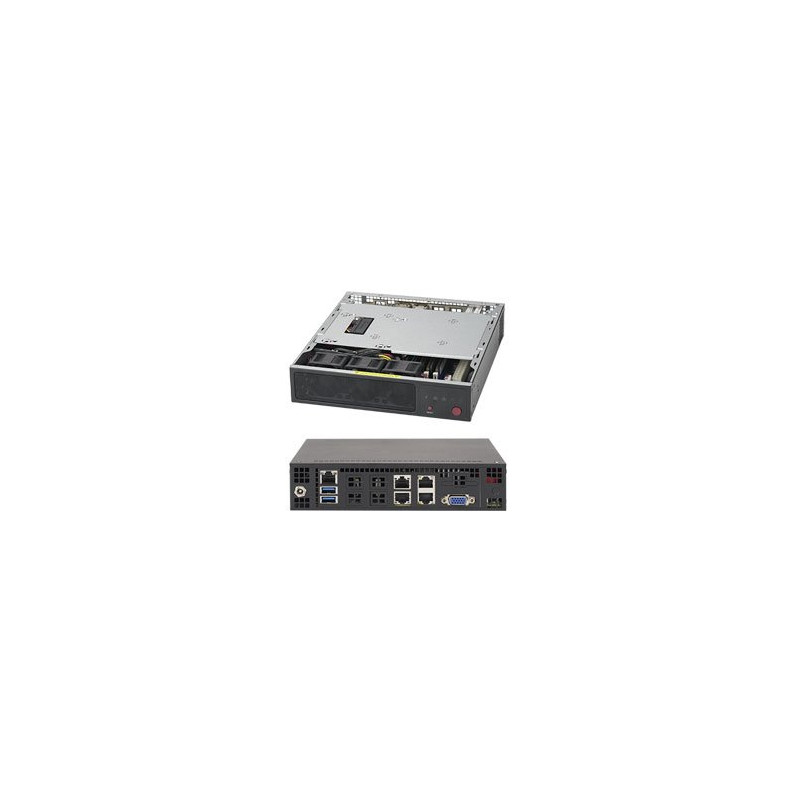

SUPERMICRO mini server 1x FCBGA Xeon D-1528 (6C/12T), 4x DDR4 ECC, M.2, 2x 10Gb + 2x 1Gb LAN, IPMI, 60W PSU

Product SKUs

SYS-E200-8D SuperServer E200-8D (Black)



Motherboard



Super X10SDV-6C-TLN4F


Processor/Cache

CPU Intel® Xeon® processor D-1528
FCBGA 1667
CPU TDP support 35W, 9MB, 6 Cores, 12 Threads, 1.9-2.2GHz



System Memory

Memory Capacity 4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 32GB, 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors

(using ECC memory)



On-Board Devices

Chipset System on Chip

SATA SoC controller for 6 SATA3 (6Gbps) ports

Network Controllers Dual LAN via Intel® i350-AM2 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics Aspeed AST2400



Input / Output

SATA 6 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 2 USB 3.0 ports (rear)

Display 1 VGA port

DOM 1 SuperDOM (Disk on Module) power connector

TPM TPM 2.0 header







Chassis

Form Factor Mini-1U

Model CSE-101F



Dimensions

Width 7.6" (193mm) / 15" (381mm) - pkg.

Height 1.7" (43mm) / 10.87" (276mm) - pkg.

Depth 8.9" (226mm) / 5.59" (142mm) - pkg.

Weight Gross Weight: 6.5 lbs (2.95 kg)
Net Weight: 3.0 lbs (1.36 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button

LEDs Power LED (Hard drive activity LED)



Expansion Slots

M.2 Interface: PCI-E 3.0 x4
Form Factor: M Key 2242/2280
Support SATA devices



Drive Bays

Internal 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)



System Cooling

Fans Passive CPU heat sink and 2x 40mm chassis fans



Power Supply

DC Power Adapter


System BIOS

BIOS Type 128Mb SPI Flash with AMI BIOS

BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup



Management

Software IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watch Dog

Power Configurations ACPI / APM Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery

Fan Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors



Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec. Operating Temperature:

0°C to 40°C (32°F to 104°F)
Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:

8% to 90% (non-condensing)
Non-operating Relative Humidity:

5% to 95% (non-condensing)
