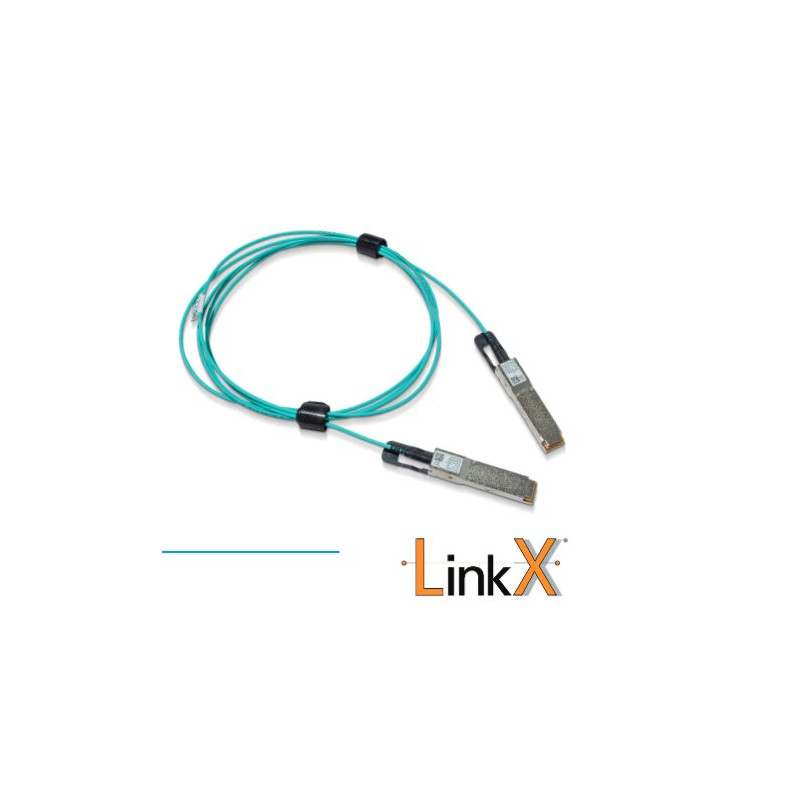

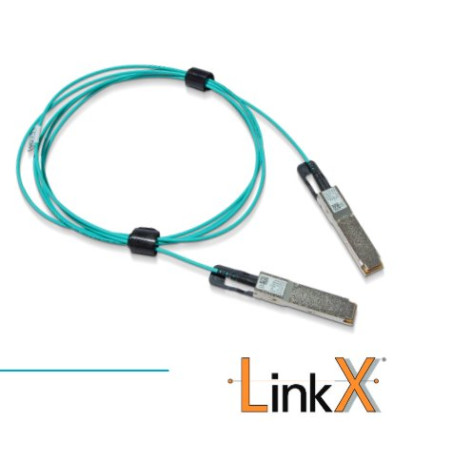

Nvidia Mellanox® active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 10m

Mellanox® MFS1S00-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. The MFS1S00-HxxxE AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.MFS1S00-HxxxE has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00-HxxxE offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. Mellanox’s unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers
