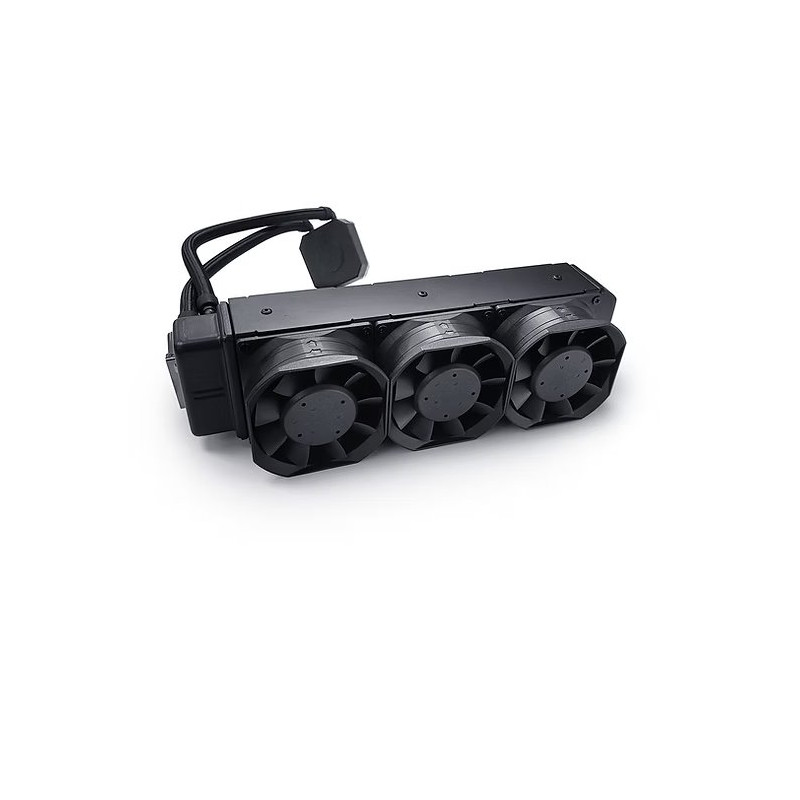

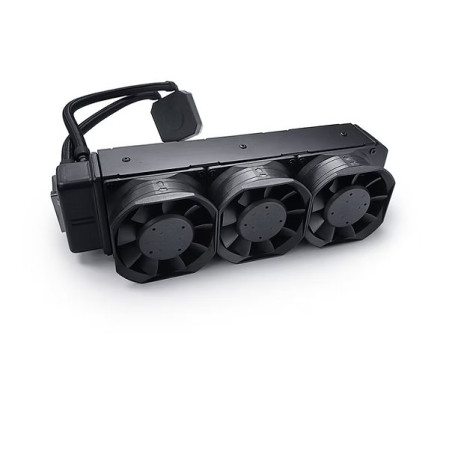

CPU Support

Intel & AMD

CPU Socket

LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM

AM2/AM3/AM4/AM5/FM1/FM2

Screw Type

#6-32/M3/M4

Installation Torque

6-10 in-lb/5-7 in-lb/10-16 in-lb

Solution

2U Server and Up

Fan Dimension

80 x 80 x 38 mm

Cold Plate Dimension

64.5 x 64.5 x 23 mm

Radiator Dimension

304.9 x 82 x 85.1 mm

Speed

At Duty Cycle 0~20%: 2400± 200 RPM

At Duty Cycle 50%: 4800± 10% RPM

At Duty Cycle 100%: 8000±10% RPM

Bearing

2 Ball Bearing

Rated Voltage

12V

Fan Power Consumption

At Duty Cycle 0~ 20%: 1.20 W

At Duty Cycle 50%: 5.52 W

At Duty Cycle 100%: 24.72 W

Noise Level

At Duty Cycle 0~ 20%: 25.63 dBA

At Duty Cycle 50%: 47.85 dBA

At Duty Cycle 100%: 64.40 dBA

Air Flow

At Duty Cycle 0~ 20%: 35.52 CFM

At Duty Cycle 50%: 67.24 CFM

At Duty Cycle 100%: 115.61 CFM

Air Pressure

At Duty Cycle 0~ 20%: 1.39 mm-H2O

At Duty Cycle 50%: 5.97 mm-H2O

At Duty Cycle 100%: 34.06 mm-H2O

Lead Wire Pin Out

Pin1- (-)

Pin2- (+)

Pin3- (Tachometer/Signal output)

Pin4- (PWM)

Pump Power Consumption

7.2W

Life – Continuous operating

under normal temperature

(40 °C or 104 °F)

70,000 Hours
