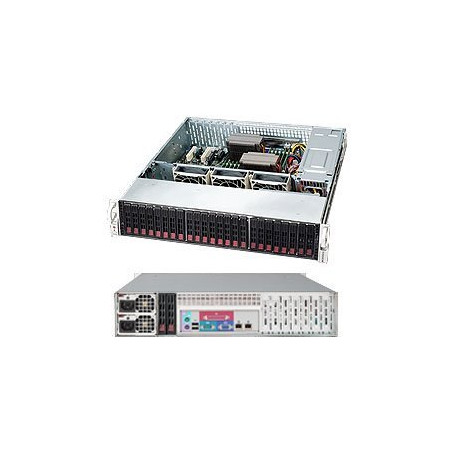

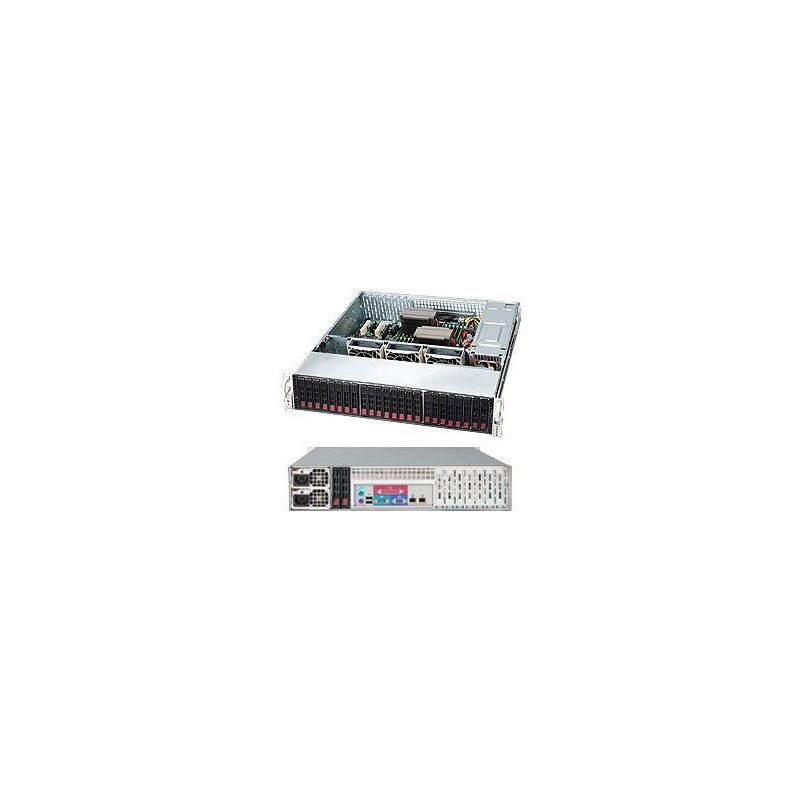

SUPERMICRO 2U chassis 24x 2,5" HS SAS/SATA (6x SFF 8643), 2x920W (80+ platinum)

Product SKUs



CSE-216BAC-R920LPB SuperChassis 216BAC-R920LPB







Form Factor



2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".

Support up to ATX 12"x13" MB with rear 2.5" HDD option installed







Processor Support



Dual, single Intel® / AMD processors







Dimensions



Height 3.5" (89 mm)



Width 17.2" (437 mm)



Depth 24.8" (630 mm)



Gross Weight 53 lbs (24.04 kg)



Packaging (W x H x L) 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)



Available Color Black







Expansion Slots



7 low-profile expansion slot(s)







Drive Bays



24 x 2.5" hot-swap drive bay

Optional 2 x 2.5" hot-swap drive bay







Backplane



24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD







Front Panel



Buttons Power On/Off button

System Reset Button



LEDs 2 Network Activity LEDs

Fan Fail/System Over Heat LED

HDD activity LED

Power Status LED

Unit Identification (UID) LED















Systems Cooling



Fans 3 x 8cm high-performance PWM fan(s)

Optional 5 x 6cm 4pin high performance fan(s)







System Monitoring



Chassis intrusion switch







Operating Environment (System)



Operating Temperature Range 5°C - 35°C (41°F - 95°F)



Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)



Operating Relative Humidity Range 8% - 90% (non-condensing)



Non-Operating Relative Humidity Range 5% - 95% (non-condensing)







Power Supply

1U 920W Redundant Platinum Super Quiet power supply W/PMbus

Power Efficiency 94%



Total Output Power and Input 920W with Input 100 - 240Vac



AC Input Frequency 50-60Hz



Dimensions (L x W x H) 336 x 76 x 40 mm



Output Type Backplanes (gold finger)



-12V Max: NAA



+12V Max: 75A / Min: 1A (100Vac - 240Vac)



+5Vsb Max: 4A / Min: 0A



+12Vsb Max: NAA



Power Distributor PDB-PT216-2824

O/P: 12V/100

+5V Max: 30

+3.3V Max: 24

-12V Max: 0.6



Certification Platinum Certified Platinum Certified









Regulatory (Power Supply)



Power Supply Safety / EMC BSMI

CCC

CE/EMC

FCC class B

TUV/CB

UL/CUL
