Product SKUs

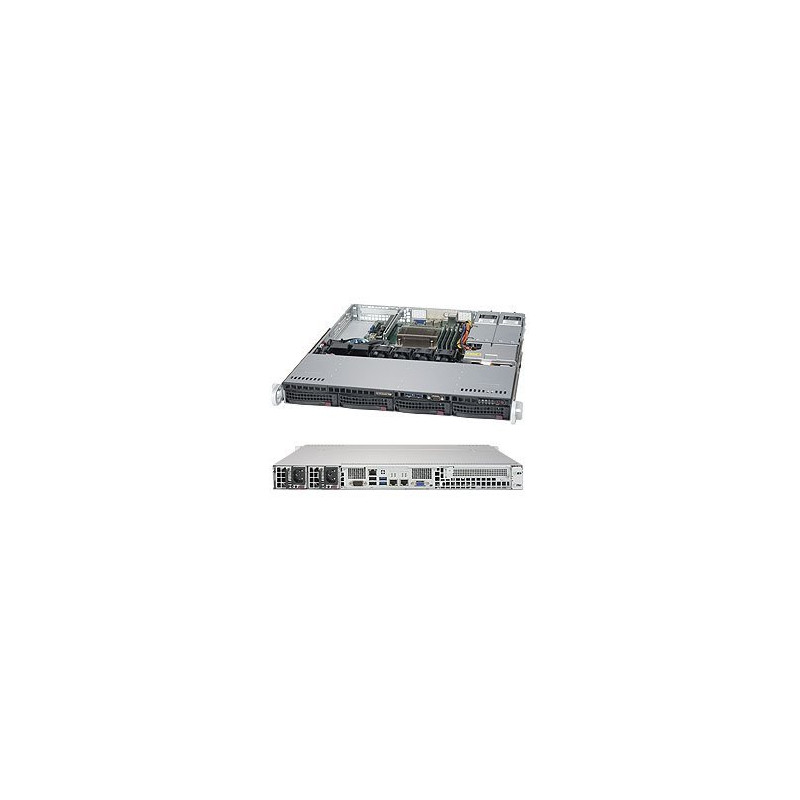

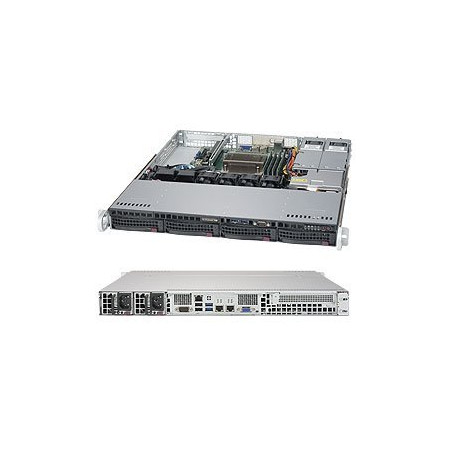

CSE-813MFTQC-R407CB SuperChassis 813MFTQC-R407CB
Form Factor
1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.85" (503 mm)
Gross Weight 33.5 lbs (15.2 kg)
Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Optional 1 x USB + COM port tray
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency 94%
Total Output Power and Input 400W with Input 100 - 240Vac
400W with Input 200 - 240Vdc
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 220 x 54.5 x 40.25 mm
Output Type Backplanes (gold finger)
+12V Max: 33A (100Vac - 240Vac)
+5Vsb Max: 3A / Min: 0A
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Components ?
Standard Parts List
Part Number Qty Description
HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M)
Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M
Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm
Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Power Supply & Accessory PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M
Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
Optional Parts List
Part Number Qty Description
Front USB MCP-220-00114-0N - Black 2x USB3.0/COM port tray in slim DVD bay,RoHS/REACH
Front USB MCP-220-00129-0B - Black 2x USB3.0/COM port tray in slim FDD bay
Mounting Rail CSE-PT52L - Sliver chassis rail set for SC813M,515,113M
Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE
Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF
Motherboard (for CSE- 813MFTQC-R407CB)
X10SRM-TF X10SRM-F X11SPi-TF X11SSH-GTF-1585
X11SSH-GF-1585 X11SSH-GTF-1585L X11SSH-GF-1585L X11SPL-F
X11SPM-TF X11SPM-TPF X11SPM-F X11SRM-F
X11SRM-VF H11SSL-NC H11SSL-C H11SSL-i
= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Servers (for CSE- 813MFTQC-R407CB)
5019P-MTR 5018D-MHR7N4P
