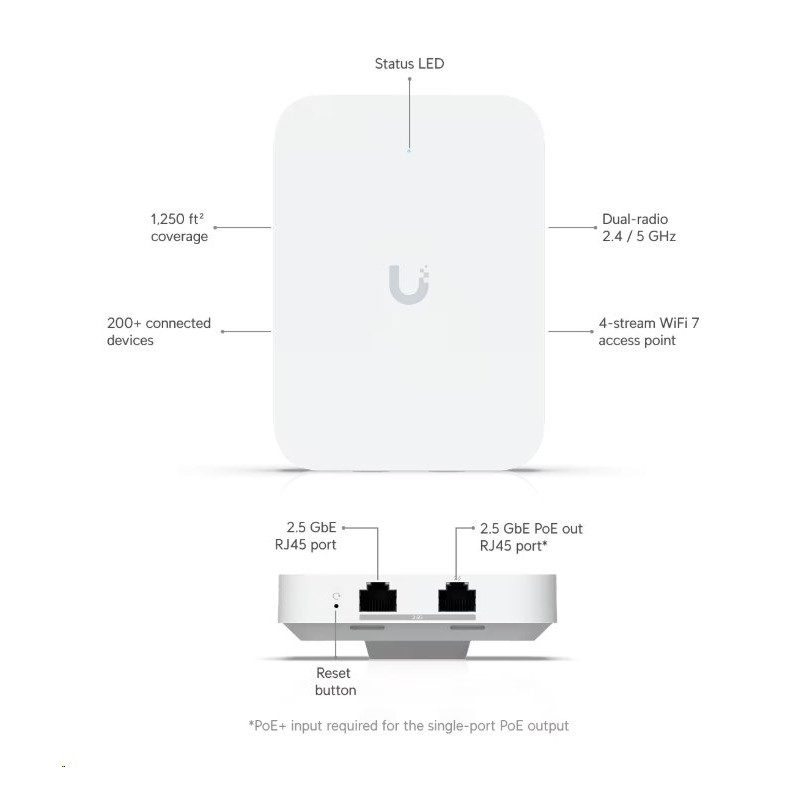

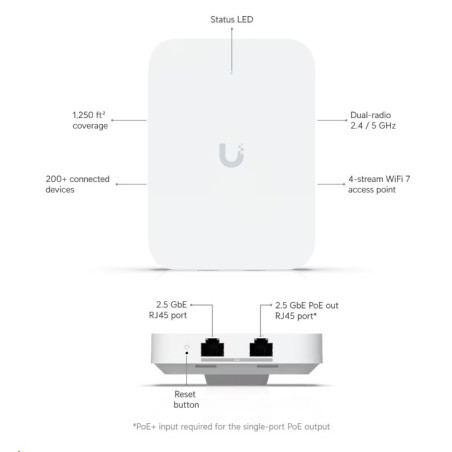

Ubiquiti U7 In-Wall

Overview
Dimensions
137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m2 (1,250 ft2)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Wall
(Metal Wall Mount Included)
Power Method
PoE
PoE+ (Required for PoE output)
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
8 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
13W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(3) 2.5 GbE RJ45 ports
Weight
400 g (14.1 oz)
Management
Ethernet
Built-In Switch
(1) PoE+ input and
(1) PoE output
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
