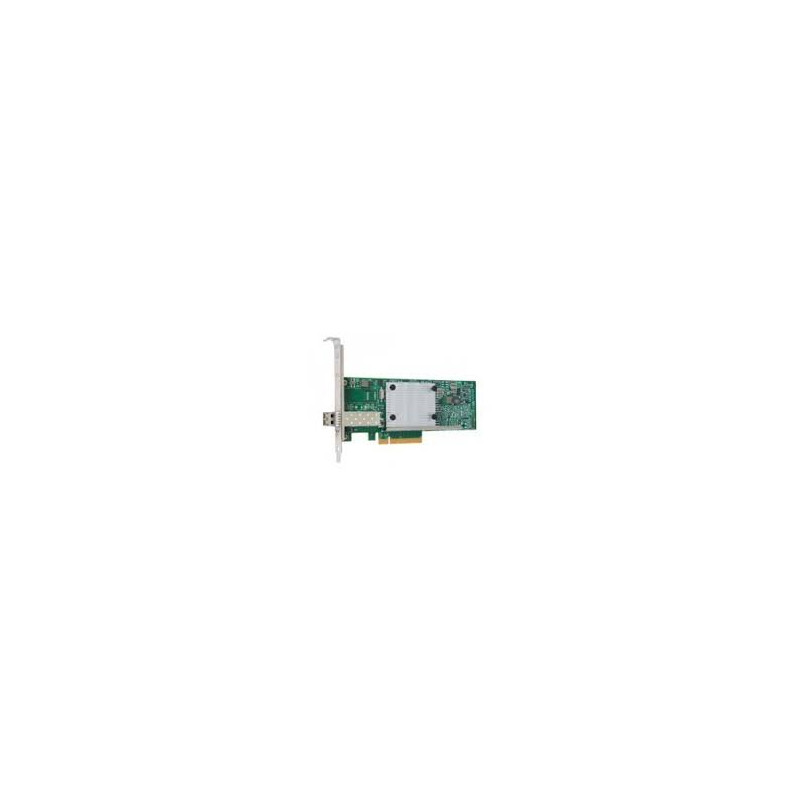

QLOGIC Single port PCIe Gen3 to 10Gb CNA Direct Attach Copper Adapter

Ships with empty SFP+ cages (optics and cables are not included)



The QLogic® 8400 Series Converged Network Adapters support simultaneous LAN (TCP/IP) and SAN (Fibre Channel over Ethernet [FCoE] and iSCSI) traffic at 10Gbps Ethernet (GbE) line rate speeds. The 8400 Series Adapter provides extremely low host CPU usage by enabling full hardware offloads.

PCI Express Gen3 x8
Delivers full line-rate 10GbE performance across both ports
Industry-leading storage (FCoE and iSCSI) transactional performance
Enables provisioning of 10GbE ports for greater deployment flexibility through switch-independent NIC partitioning (NPAR)
Boosts host CPU efficiency with hardware offloads for NVGRE and VXLAN tunnels
Improves reliability and interoperability—leverages QLogic’s market-proven Ethernet architecture and software
Network boot support:
iSCSI remote boot
FCoE boot from SAN
Pre-execution environment (PXE) 2.0
PCI-SIG® single root input/output virtualization (SR-IOV)
Data center bridging (DCB)
Low-profile PCIe form factor


QLogic 8400 Series

Host Bus Interface Specifications
Bus Interface
•
PCI Express Gen3 x8 (x8 physical connector)
Host Interrupts
•
MSI-X supports independent queues
I/O Virtualization and Multitenancy
•
SR-IOV
•
Switch-independent NIC partitioning
•
Generic routing encapsulation (NVGRE) packet task
offloads
•
Virtual Extensible LAN (VXLAN) packet task offloads
Compliance
•
PCI Base Specification
, rev. 3.0
•
PCI Bus Power Management Interface Specification
,
rev. 1.2
•
Advanced configuration and power interface
(ACPI) v2.0
Ethernet Specifications
Throughput
•
10Gbps line rate per port
Ethernet Frame
•
1,500 bytes and larger (jumbo frame)
Stateless Offload
•
TCP segmentation offload (TSO)
•
Large send offload (LSO)
•
Large receive offload (LRO)
•
Giant send offload (GSO)
•
TCP and user datagram protocol (UDP) checksum
offloads
•
Receive segment coalescing (RSC)
•
Interrupt coalescing
•
RSS and TSS
•
VMware NetQueue, Microsoft VMQ, and Linux
Multiqueue
Compliance
•
IEEE 802.3ae (10Gb Ethernet)
•
IEEE 802.1q (VLAN)
•
IEEE 802.3ad (Link Aggregation)
•
IEEE 802.3x (Flow Control)
•
IPv4 (RFC 791)
•
IPv6 (RFC 2460)
•
IEEE 802.1Qbb (Priority-Based Flow Control)
•
IEEE 802.1Qaz (data center bridging exchange
(
DCBX) and enhanced transmission selection [ETS])
FCoE Specifications
Performance
•
2.6 million FCoE IOPS (QLE8442)
iSCSI Specifications
Performance
•
1.5 million iSCSI IOPS (QLE8442)
Tools and Utilities
Management Tools and Device Utilities
•
Advanced Control Suite™ (ACS)
•
Native OS management tools for networking
Boot Support
•
iSCSI remote boot
•
FCoE boot from SAN
•
PXE 2.0
Operating System Support
•
For the latest applicable operating system
information, see
http://driverdownloads.qlogic.com
Physical Specifications
Ports
•
QLE8440: single 10Gbps Ethernet
•
QLE8442: dual 10Gbps Ethernet
Form Factor
•
PCI Express short, low-profile card:
167.64mm × 68.91mm (6.60in. × 2.71in.)
Agency Approvals—EMI and EMC1
US and Canada
•
FCC Rules,CFR Title 47, Part 15, Subpart B:2013
Class A
•
Industry Canada, ICES-003:2012 Class A
Europe
•
EN55022:2010/CISPR 22:2009+A1:2010 Class A
•
EN55024:2010
•
EN61000-3-2:2006 A1+A2:2009
•
EN61000-3-3:2008
Japan
•
VCCI:2012-04; Class A
1
Agency certifications are pending.
Australia and New Zealand
•
AS/NZS; CISPR 22:2009+A1:2010 Class A
Korea
•
KC-RRA KN22 KN24(2013) Class A
Agency Approvals—Safety
1
US and Canada
•
UL 60950-1 (2nd Edition) 2007
•
CSA C22.2 No.60950-1-07 (2nd Edition) 2007
Europe
•
TUV EN60950-1:2006+A11+A1+A12 2nd Edition
•
TUV IEC 60950-1:2005 2nd Edition Am 1:2009 CB
Environmental and Equipment Specifications
Temperature
•
Operating: 32°F to 131°F (0°C to 55°C)
•
Storage: –40°F to 149°F (–40°C to 65°C)
Airflow
•
QLE8440 and QLE8442: 200LFM
Humidity (Relative, Non-condensing)
•
Operating and non-operating: 10% to 90%
Power
•
QLE8440-CU/-SR: 7.1 watts (nominal)
•
QLE8442-CU/-SR: 7.65 watts (nominal)
