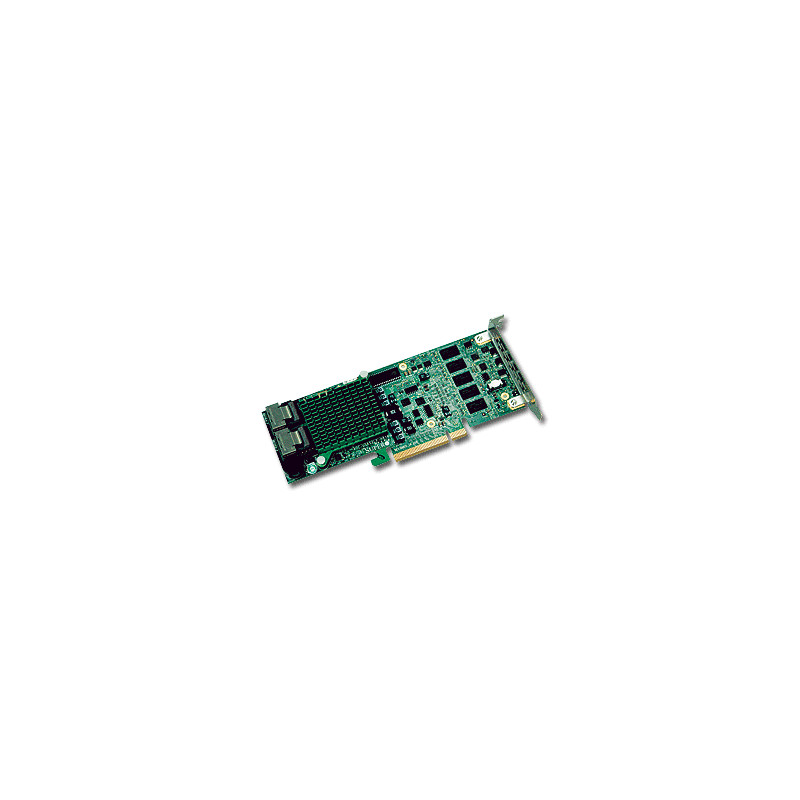

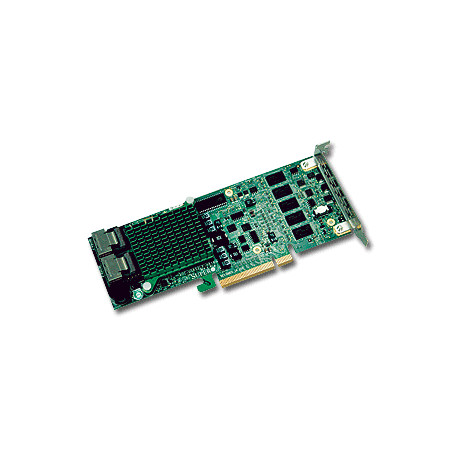

SUPERMICRO 2108 based SAS/SATA RAID- 8 internal ports/Low profile-PCI-E

Supermicro Low Profile 6Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro UIO MegaRAID Low Profile AOC-USAS2LP-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Using a LSISAS 2108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, this UIO internal RAID adapter deliver an intelligent and robust RAID solution.

The AOC-USAS2LP-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

To order, contact your distributor. This product is only available through Supermicro.

ey Features

LSISAS 2108 8-port PCI-E SAS-2 controller
8-port (8 internal) 6Gb/s per port
Supports RAID 0, 1, 5, 6, 10, 50, 60
On board hardware IO Processor
512MB 800MHz DDR2 on-card cache
Advanced array configuration and management utilities
Automatically negotiates PCI-E link widths
Power management support
Supports 1.5, 3.0 and 6.0 Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP and SATA protocols
Optional Battery Backup Unit for cached data protection (BTR-0018L-0000-LSI) - operating temperature (Ambient) from 10C° - 45C°
OS Support : Windows XP/2003/2008/Vista, RedHat Enterprise and SUSE Linux
